Fig. 4: SIC comparison between view and place and place/view field locations. | Nature Communications

Fig. 4: SIC comparison between view and place and place/view field locations.

From: Primacy of vision shapes behavioral strategies and neural substrates of spatial navigation in marmoset hippocampus

Fig. 4

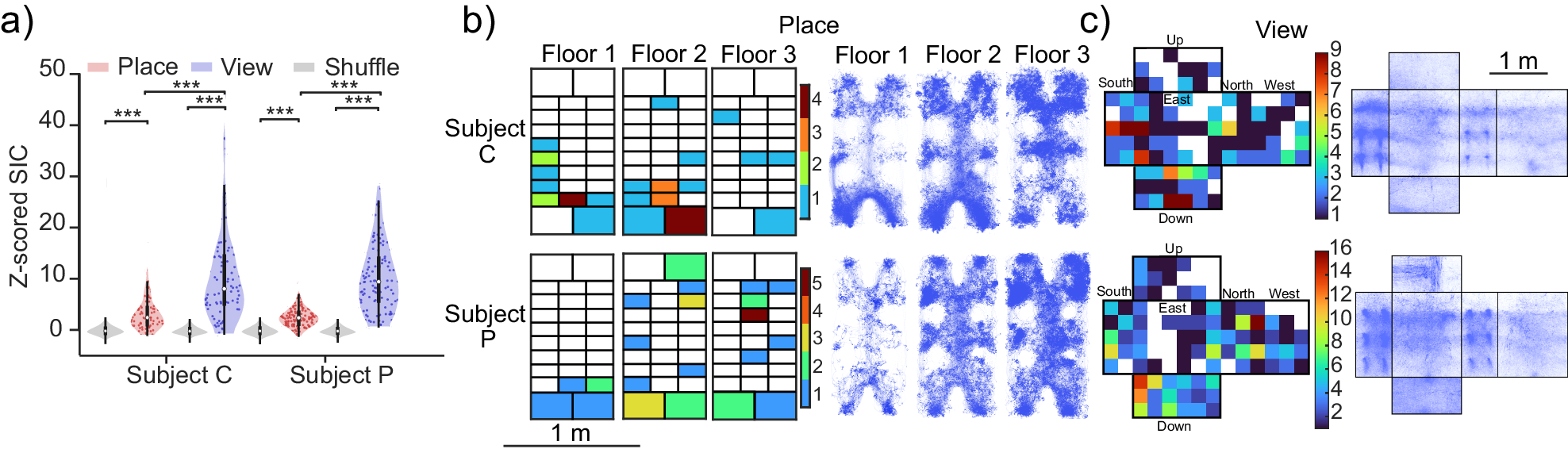

a Violin169 distribution of Z-scored SIC for putative pyramidal cells (n = 204) gray distribution is shuffled control. b Left: place field location for all place cells and separated according to the three distinct floors of the 3D maze, color indicates the number of place fields at that location, white indicates bins without place fields. Right: map of all spatial trajectories traveled across (n = 26 and n = 33 sessions) for Subject C (top) and Subject P (bottom), respectively. Color intensity reflects more time spent in that position. c View field locations for all view cells, color indicates the number of view fields at that location, white indicates bins without view fields. Right: map of all view-gaze positions (n = 26 and n = 33 sessions) for Subject C (top) and Subject P (bottom), respectively. Color intensity reflects higher counts.
