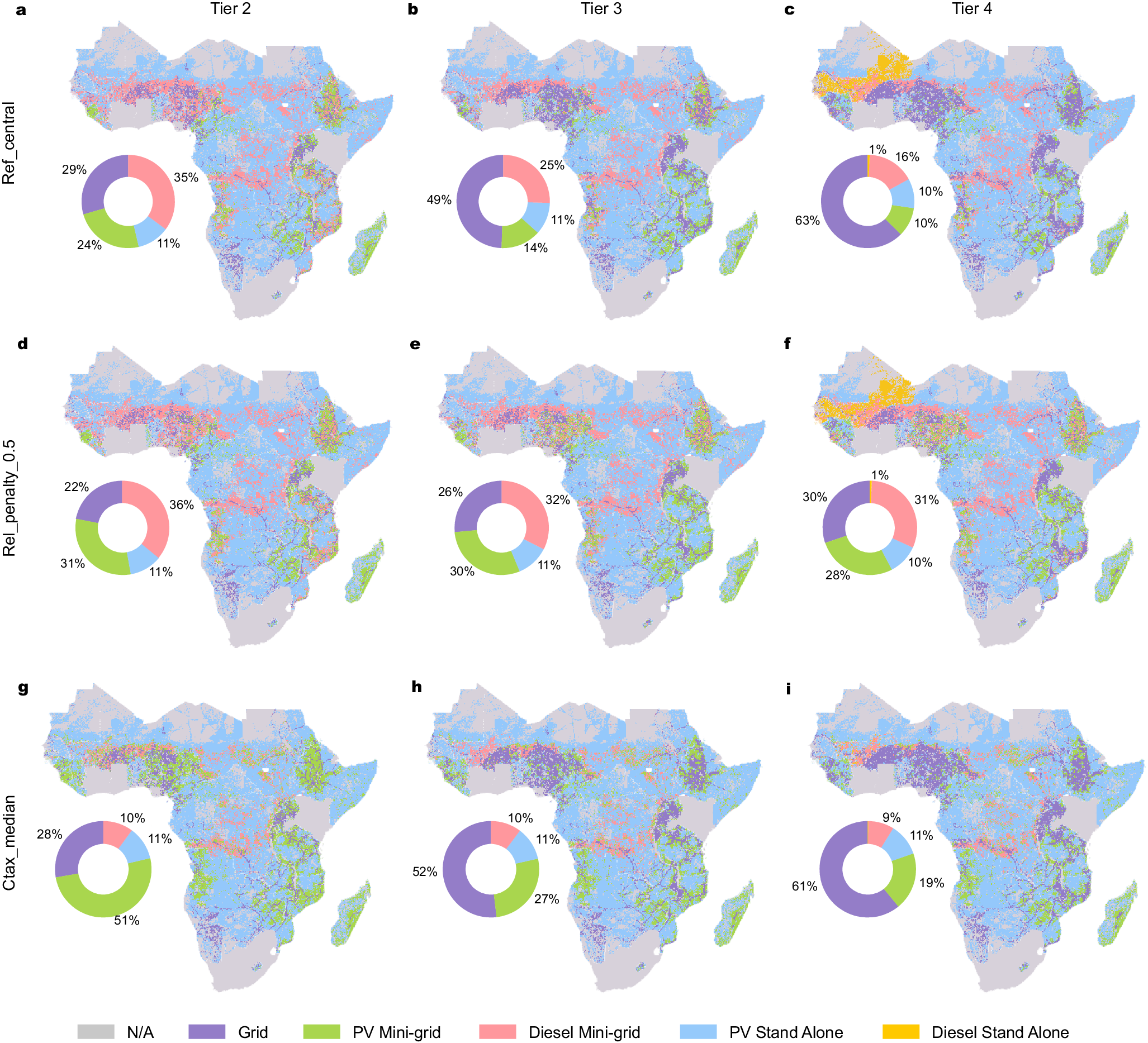

Fig. 2: Spatially distributed least-cost electrification technologies for the Ref_central, Rel_penalty_0.5 and Ctax_median scenarios at electricity demand Tiers 2–4.

Panels a–c represent the Ref_central results, with no carbon price or unmet demand penalty applied, they show a declining role for off-grid technologies as demand increases. Additionally, there are areas (e.g., parts of Central Africa) where diesel mini-grids are more prevalent; and other parts, such as countries on the eastern coast of Southern Africa, where PV mini-grids have greater usage. There are consistent areas of lower population density where stand-alone PV systems are almost always cheaper than diesel alternatives. Panels d–f represent the Rel_penalty_0.5 scenario applying a 0.5 US Dollars ($)/kWh of unmet demand penalty universally across all technologies, this reduces the share of the grid at all demand tiers, with the largest difference at Tier 4. Panels g–i represent the Ctax_median scenario, equating to a carbon price scheme of around $4 in 2020, rising to $146 by 2030 here diesel usage is reduced in all three tiers, with the largest difference with Ref_central seen at Tier 2. US Dollars given in 2022 values.
