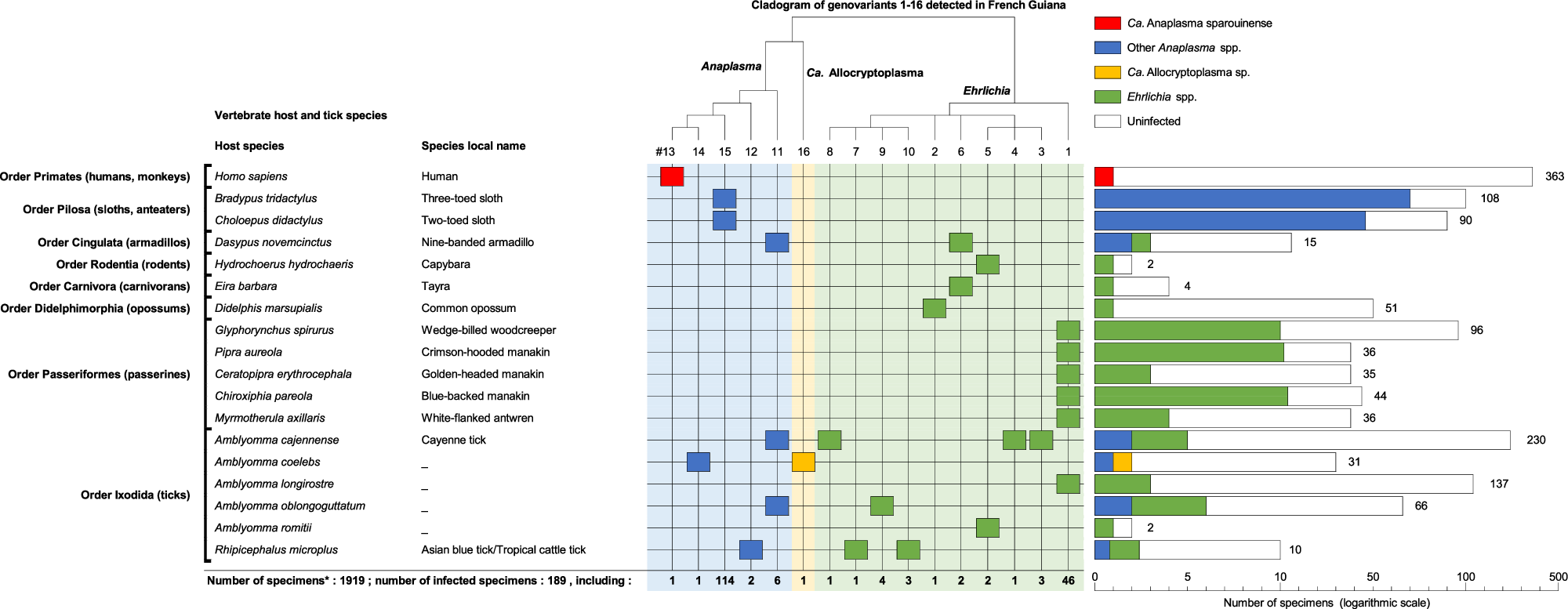

Fig. 2: Distribution of Ehrlichia, Anaplasma, and Ca. Allocryptoplasma infections in humans, wildlife, and associated ticks in French Guiana.

From: Detection of Anaplasma and Ehrlichia bacteria in humans, wildlife, and ticks in the Amazon rainforest

Fig. 2: Distribution of Ehrlichia, Anaplasma, and Ca. Allocryptoplasma infections in humans, wildlife, and associated ticks in French Guiana.

Only the 18 infected species are shown here. A complete figure including both the 18 infected and the 54 uninfected species is provided in Supplementary Fig. 1. The left part of the Figure shows the list of the 18 infected species. The top part shows a cladogram of the Ehrlichia, Anaplasma, and Ca. Allocryptoplasma genovariants detected in this study. The right part of the figure gives the distribution of infections in specimens for each of the 18 infected species (color: infected specimens; white: uninfected specimens). Source data on infection prevalence are provided in the Source Data.
