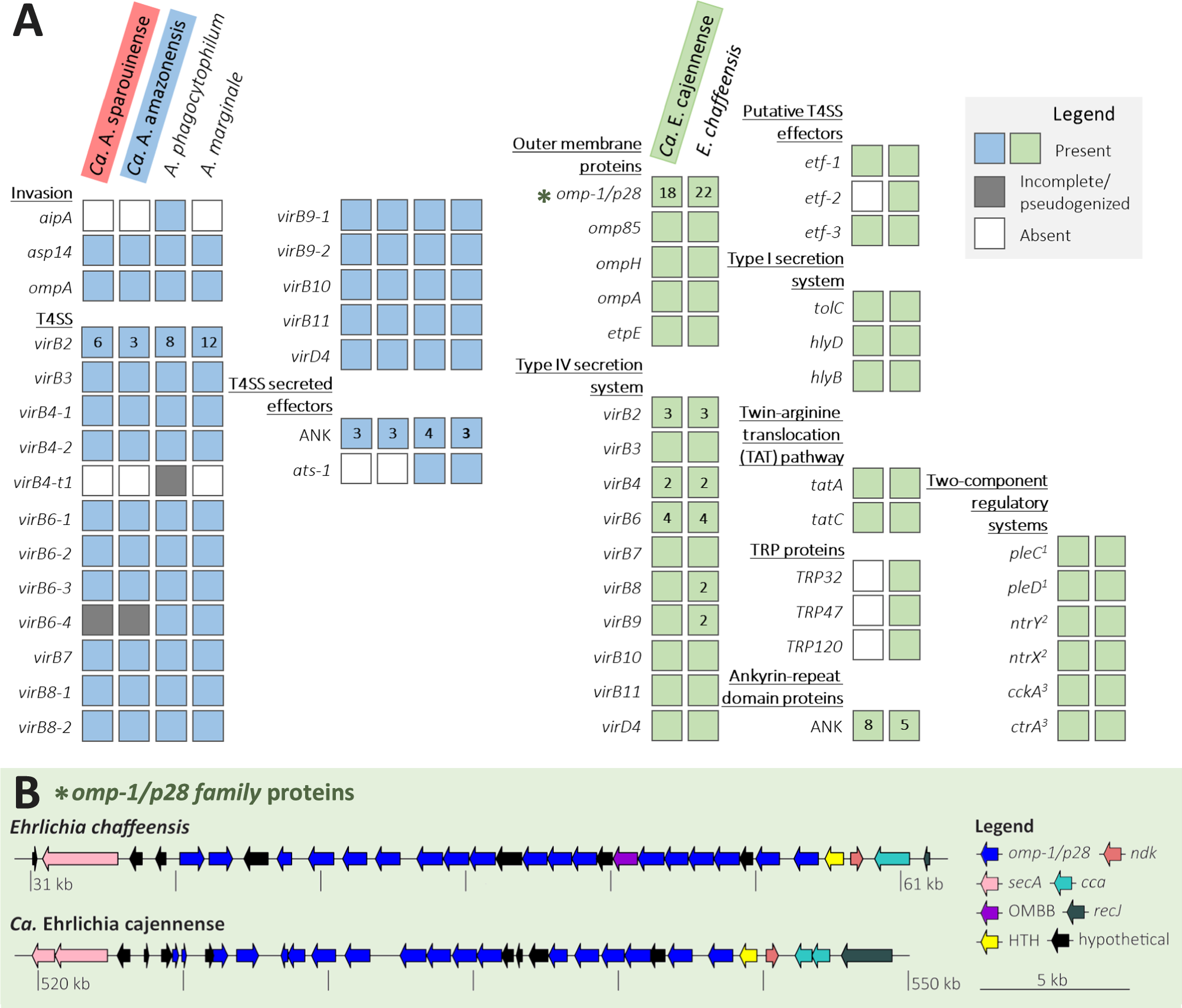

Fig. 5: Pathogenic features of Ca. Anaplasma sparouinense, Ca. Anaplasma amazonensis, Ca. Ehrlichia cajennense MAGs and representative genomes of Anaplasma and Ehrlichia species (A. phagocytophilum strain HZ [CP006617], A. marginale strain Florida [CP001079], and E. chaffeensis strain West Paces [CP007480]).
![Fig. 5: Pathogenic features of Ca. Anaplasma sparouinense, Ca. Anaplasma amazonensis, Ca. Ehrlichia cajennense MAGs and representative genomes of Anaplasma and Ehrlichia species (A. phagocytophilum strain HZ [CP006617], A. marginale strain Florida [CP001079], and E. chaffeensis strain West Paces [CP007480]).](http://media.springernature.com/full/springer-static/image/art%3A10.1038%2Fs41467-024-48459-y/MediaObjects/41467_2024_48459_Fig5_HTML.png?as=webp)
A Virulence genes in Anaplasma spp. and Ehrlichia spp. Color of boxes is indicative of the presence or pseudogenization or absence for each gene. Numbers associated with boxes precise the number of gene copies identified, no number is equal to one copy. B Structure of the genomic region encoding omp-1/p28 gene copies in Ca. Ehrlichia cajennense MAG, in comparison with a pathogenic representative E. chaffeensis. Each intact gene and its direction is represented by an arrow, for which the color is indicative of the protein family (blue: omp-1/p28; darkblue: single-stranded-DNA-specific exonuclease RecJ; lightblue: poly A polymerase head domain protein (cca gene); red: nucleoside diphosphate kinase Ndk; pink: protein translocase SecA; yellow: helix-turn-helix family protein HTH; violet: outer membrane beta-barrel domain protein OMBB; black: hypothetical protein).
