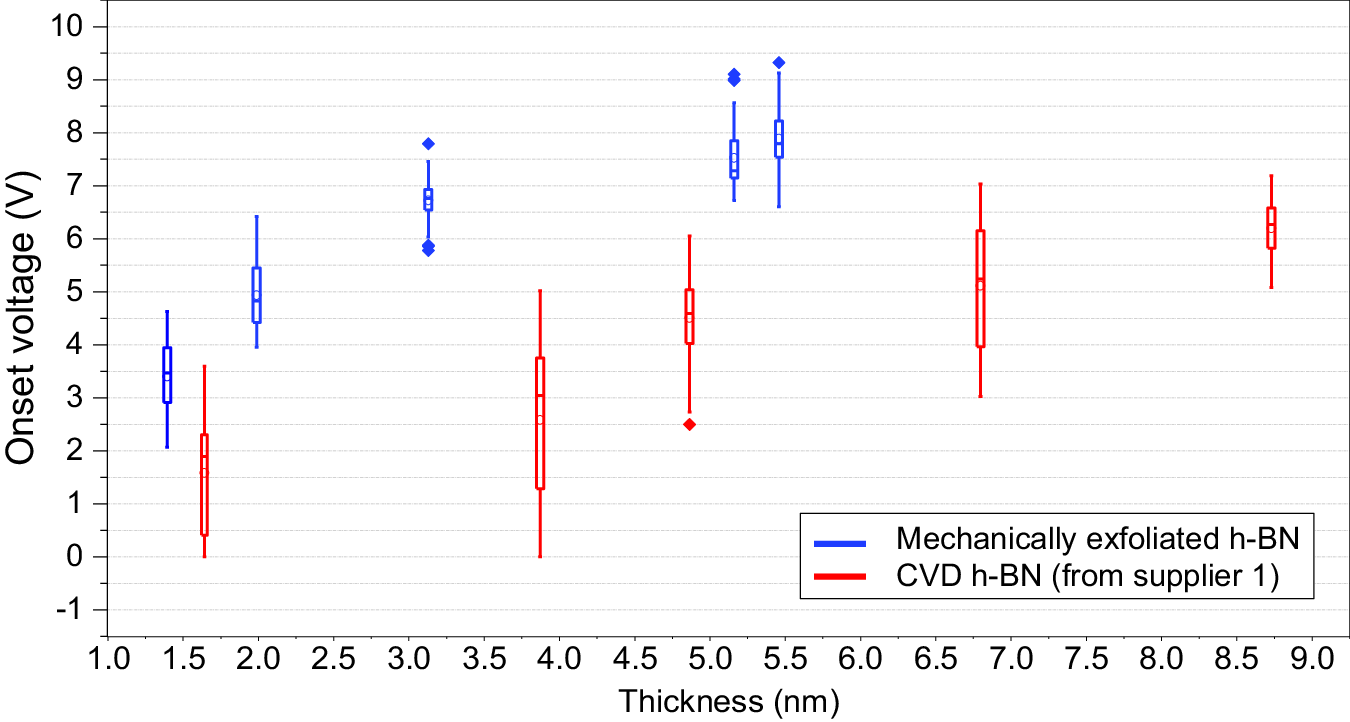

Fig. 7: Benchmarking the insulating properties of CVD h-BN.
From: On the quality of commercial chemical vapour deposited hexagonal boron nitride
Statistical analysis of the onset potential registered for 100 I–V curves measured at different random locations of mechanically exfoliated h-BN and CVD-grown h-BN (from Supplier 1) for different thicknesses. Each box includes 100 data points. Inside each box, a thick solid line indicates the median value of the VON calculated from the 100 I–V curves, while the error bar represents the standard deviation of the VON calculated from the same 100 data points.
