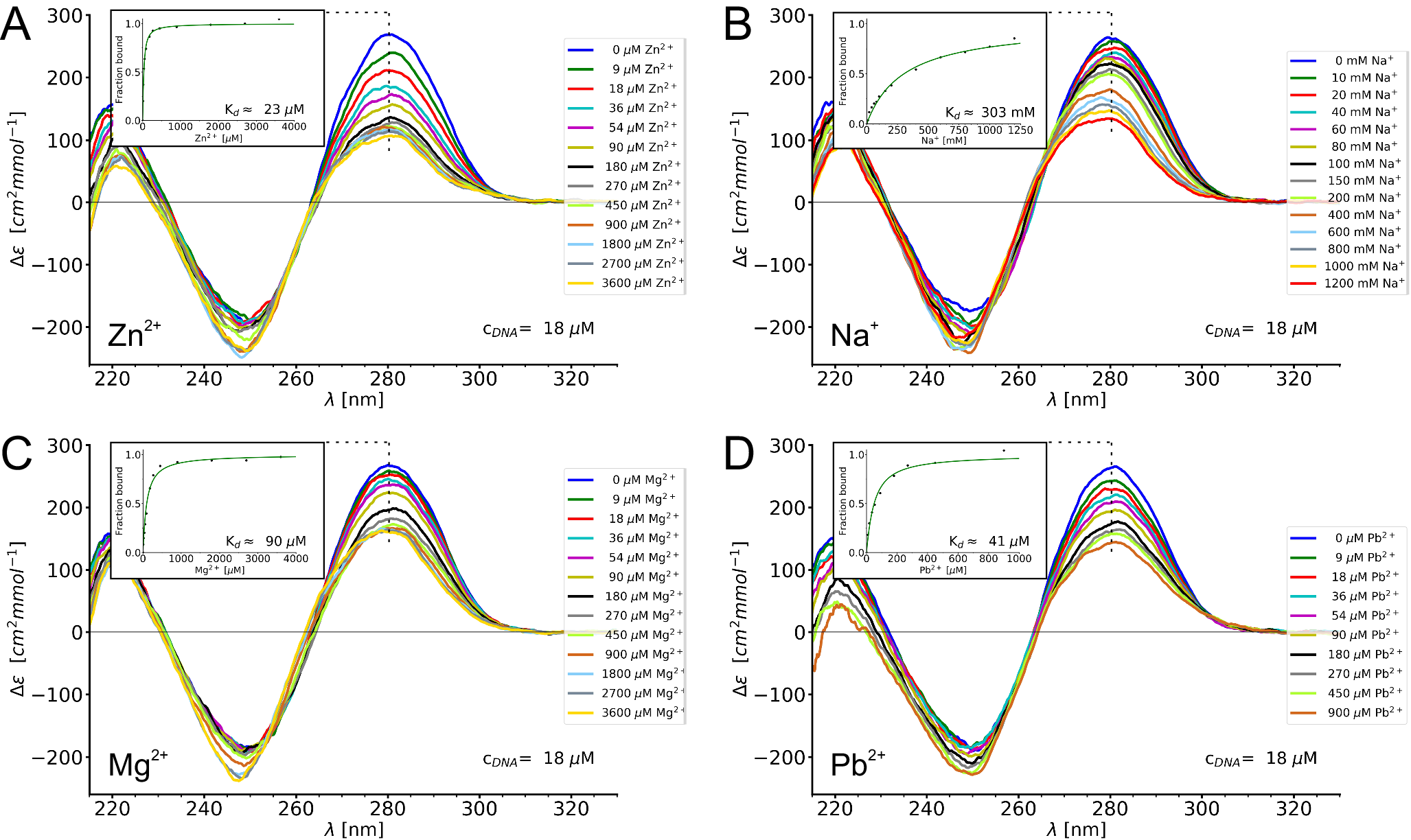

Fig. 7: Ion induced folding of the 8-17 DNAzyme construct used in the previous crystallographic investigation (sequence in Fig. 1B).
From: The 8-17 DNAzyme can operate in a single active structure regardless of metal ion cofactor
CD-monitored titrations with four different metal ions: (A) Zn2+, (B) Na+, (C) Mg2+ and (D) Pb2+. Source data are provided as a Source Data file.
