Fig. 3: Structures of individual ACPII subunit of C. placoidea PSII-ACPII.

From: Structure and distinct supramolecular organization of a PSII-ACPII dimer from a cryptophyte alga Chroomonas placoidea

Fig. 3: Structures of individual ACPII subunit of C. placoidea PSII-ACPII.

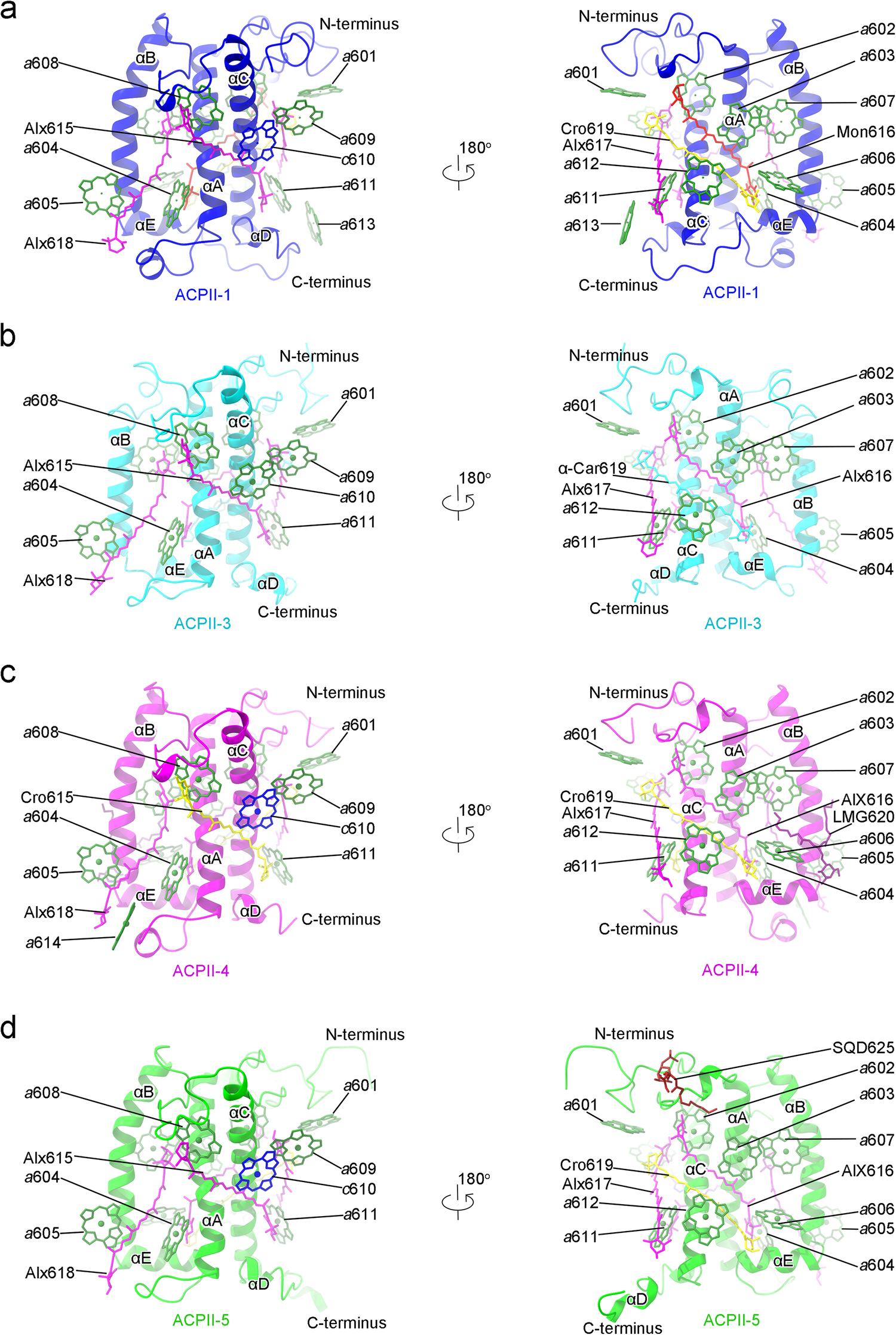

a–d Structures of ACPII-1 (a), ACPII-3 (b), ACPII-4 (c) and ACPII-5 (d) and arrangements of pigments and lipids. The apo-protein structures of ACPII subunits are depicted in transparent cartoon mode, whereas Chl a, Chl c, alloxanthin, α-carotene, monadoxanthin, crocoxanthin, LMG and SQD are depicted as sticks and colored as green, blue, magenta, cyan, red, yellow, purple and brown, respectively. For clarity, the phytol chain of the Chl molecules are omitted.
