Fig. 4: Location and structure of the CCPII-S subunit in the PSII-ACPII supercomplex of C. placoidea.

From: Structure and distinct supramolecular organization of a PSII-ACPII dimer from a cryptophyte alga Chroomonas placoidea

Fig. 4: Location and structure of the CCPII-S subunit in the PSII-ACPII supercomplex of C. placoidea.

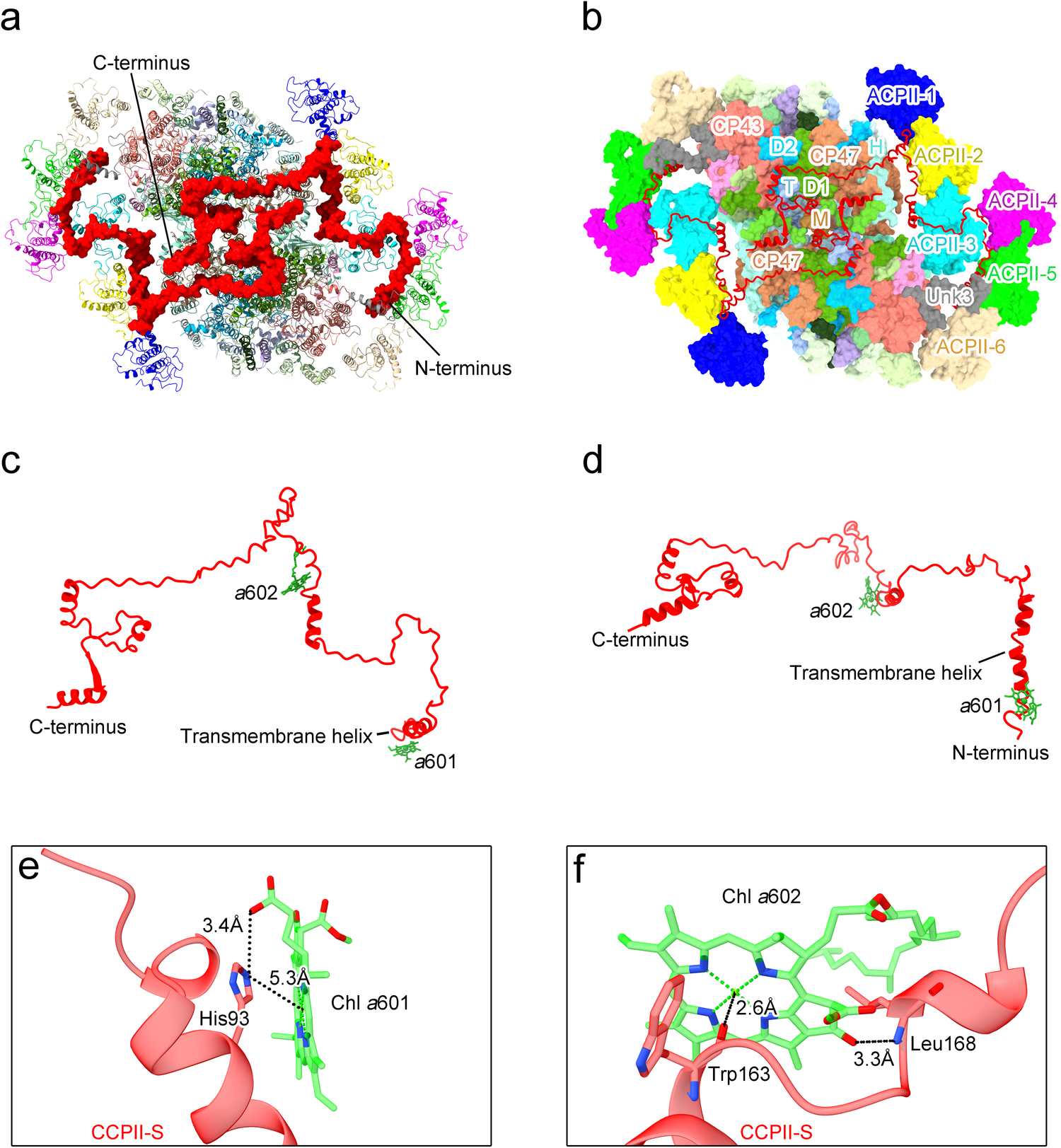

a Surface representation of the location of CCPII-S within the PSII-ACPII supercomplex viewed from the stromal side. b Subunits involved in the interactions with CCPII-S in the PSII-ACPII at the stromal side. The subunits involved in the interactions with CCPII-S are labeled. c, d The structure of CCPII-S viewed from the top (c) and side (d), respectively. e, f Interactions of CCPII-S amino acid residues with the bound pigments Chl a601 (e) and Chl a602 (f), respectively.
