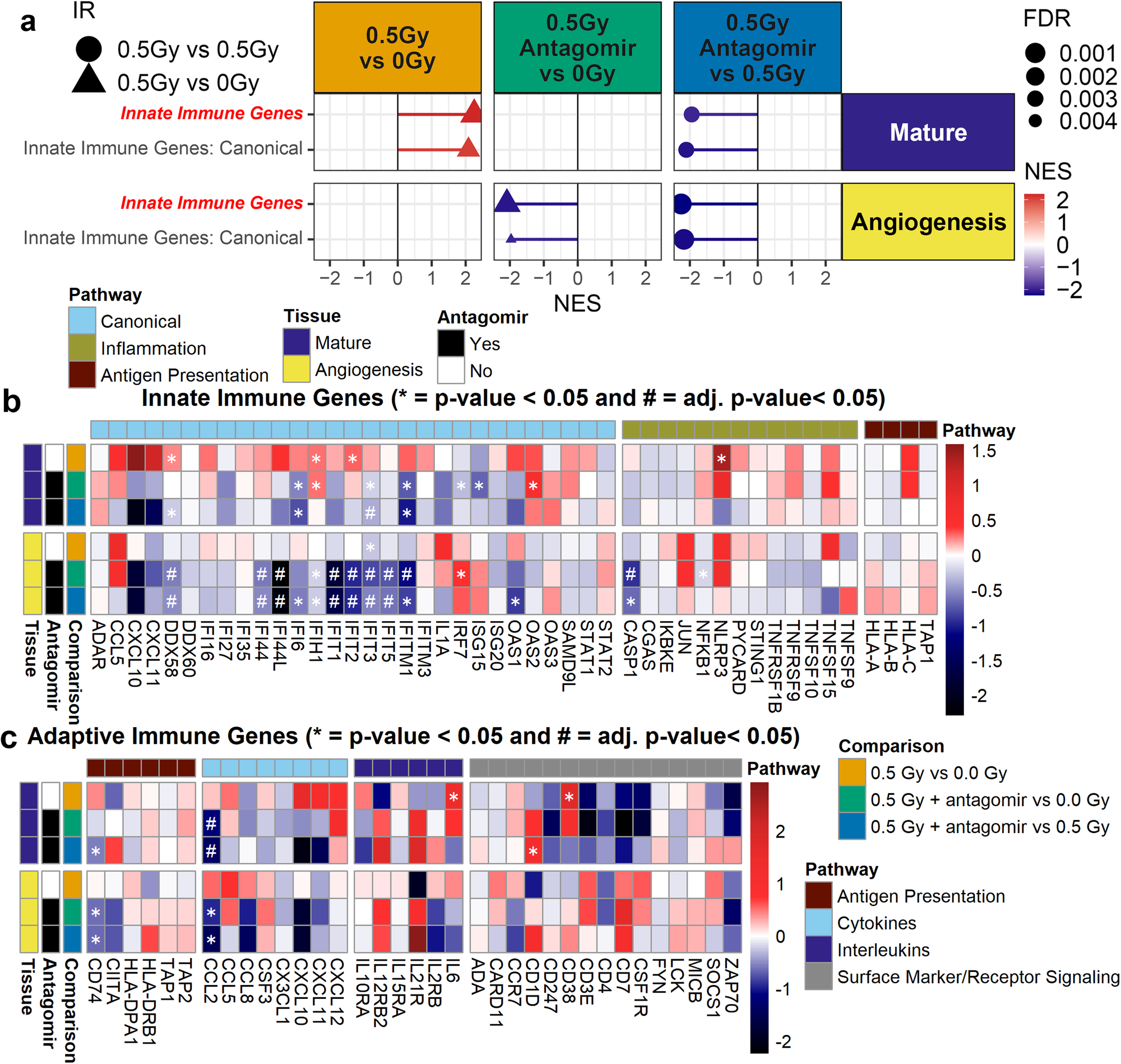

Fig. 9: Antagomir countermeasure mitigates increases in innate immune activity.
From: Space radiation damage rescued by inhibition of key spaceflight associated miRNAs
a Lollipop plot of GSEA analysis on RNA-seq data using a custom curation of innate and adaptive immune pathways for mature and angiogenesis 3D microvessel cell culture models. The red italic bold font names indicate the primary pathway containing all genes from the sub-pathways. Only pathways with a FDR < 0.25 are shown. Heatmaps of the t-scores for the individual genes in the b innate and c adaptive immune custom pathways. (*p-value < 0.05). For all RNA-seq data Wald test and the likelihood ratio test was used to generate the F statistic p-value.
