Fig. 6: Key results of different power control strategies of the EPCC.

From: Early warning and proactive control strategies for power blackouts caused by gas network malfunctions

Fig. 6

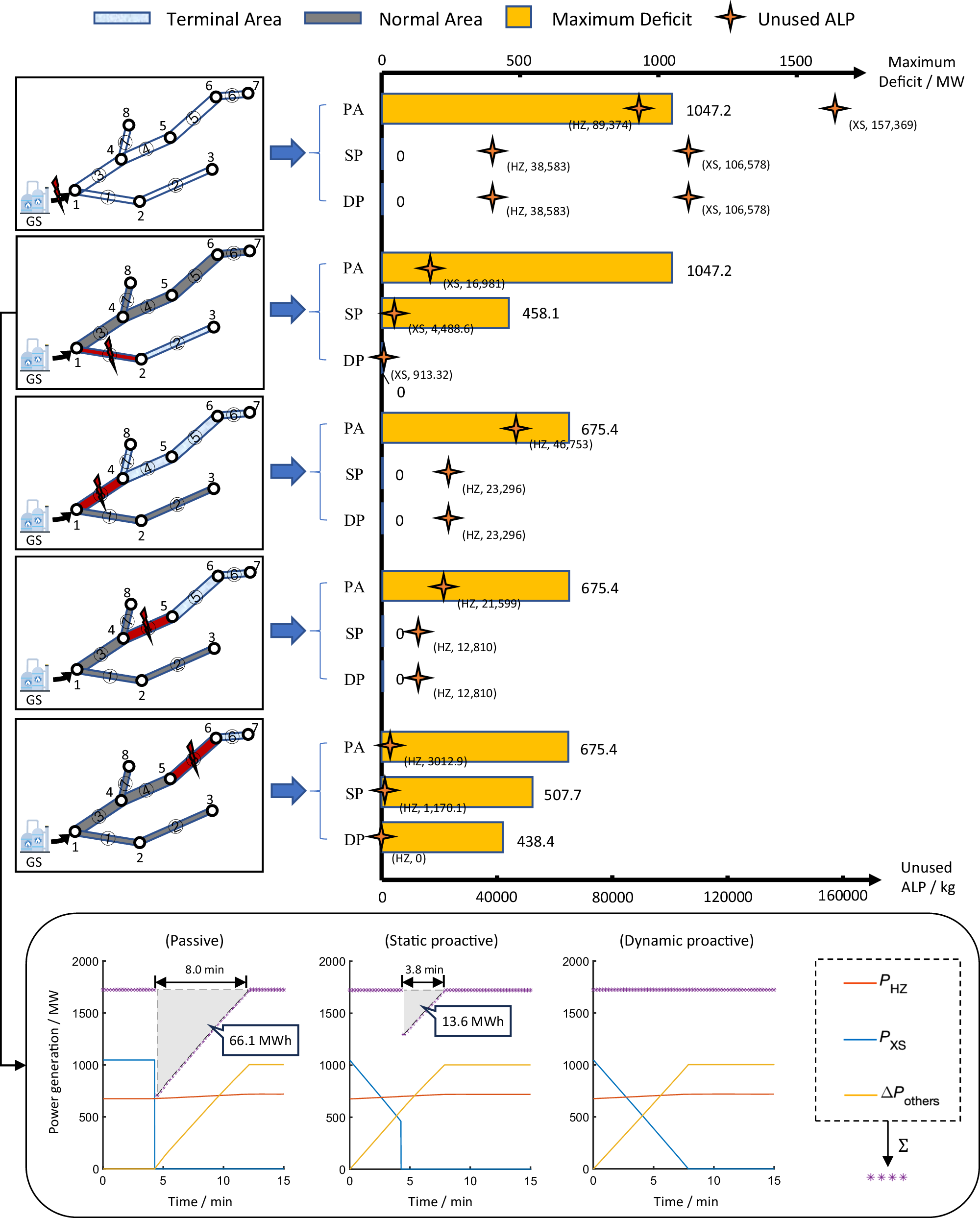

This figure shows the maximum power deficit, unused ALP and typical power generation curves of XS, HZ and external power grids under different power control strategies (passive control, static proactive control and dynamic proactive control, abbreviated as PA, SP and DP, respectively). Regarding the failure of GS, the SAETs of XS and HZ are 30 min 25 s and 13 min 21 s, respectively, and a total power deficit of 1722.6 MW can be fully eliminated using the static proactive control strategy. Regarding the failures of pipes ① and ⑤, the power deficit cannot be fully eliminated using the static proactive control strategy. When the proactive control time of XS is extended from 4 min 16 s to 7 min 53 s, the power deficit caused by the failure of pipe ① is reduced to zero, and the remaining ALP is 913.32 kg. When the proactive control time of HZ is extended from 1 min 7 s to 1 min 38 s, the ALP under the failure of pipe ⑤ is reduced to zero, and the maximum power deficit is 438.4 MW. Source data are provided as a Source Data file.
