Fig. 1: At the heart of stochastic modeling and analysis of biological systems is the mathematical problem of solving chemical master equations (CMEs). | Nature Communications

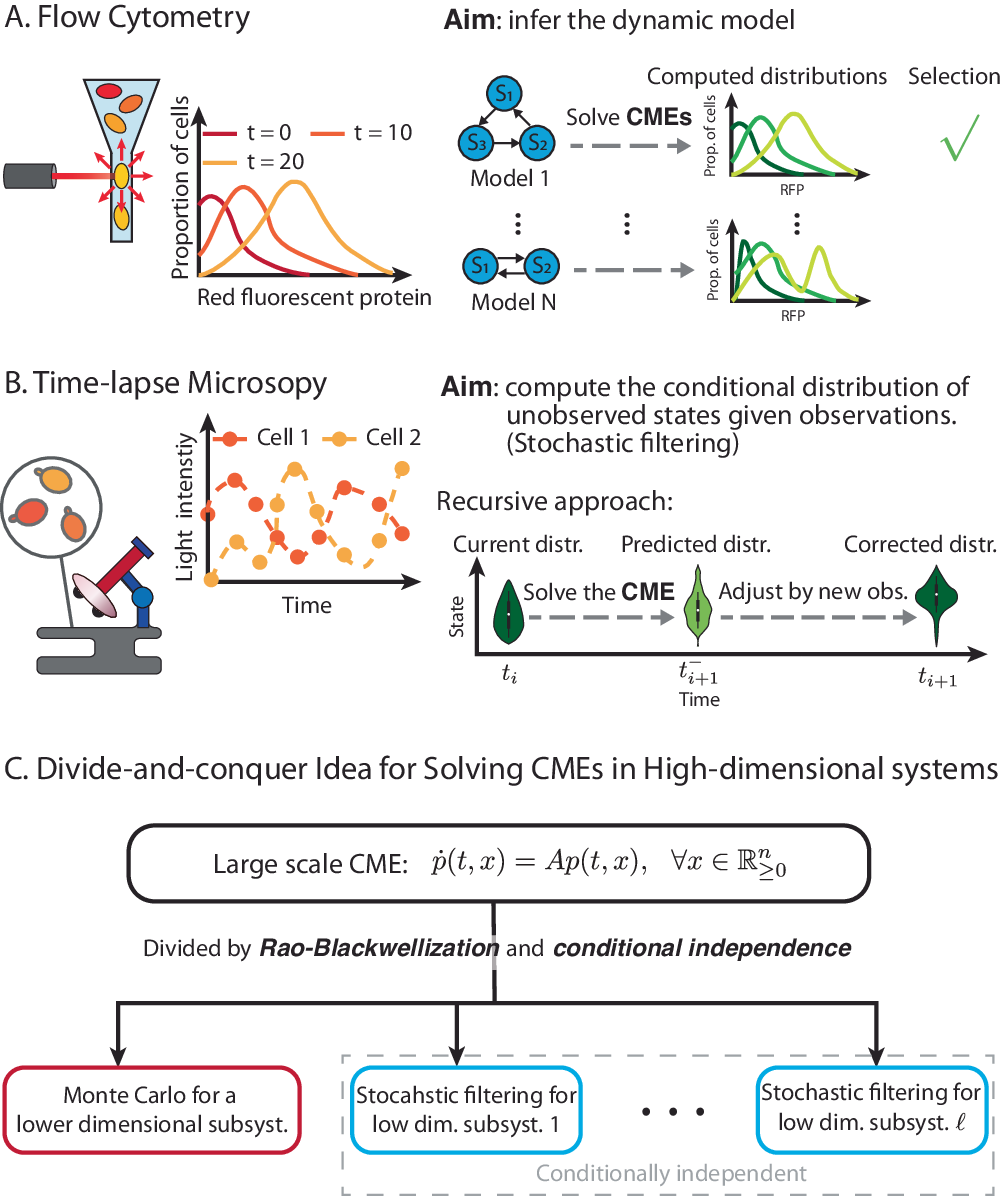

Fig. 1: At the heart of stochastic modeling and analysis of biological systems is the mathematical problem of solving chemical master equations (CMEs).

From: Advanced methods for gene network identification and noise decomposition from single-cell data

Fig. 1: At the heart of stochastic modeling and analysis of biological systems is the mathematical problem of solving chemical master equations (CMEs).The alternative text for this image may have been generated using AI.

A Inference problem associated with single-cell measurement data. To solve this inference problem, researchers need to solve CMEs to obtain single-cell distributions for many candidate models and then select the model based on the computed distributions. B Stochastic filtering based on single-cell time-course data. The aim is to compute the conditional probability distribution of unobserved species within a cell using the cell’s time-course data. The problem is often solved in a recursive manner involving prediction steps and correction steps. The prediction steps need to solve CMEs to obtain the predicted probability distributions. C Our divide-and-conquer idea for solving large-scale CMEs. Our method utilizes Rao-Blackwellization and stochastic filtering (for conditional independence) to divide the original CME into several manageable sub-problems for low dimensional subsystems.
