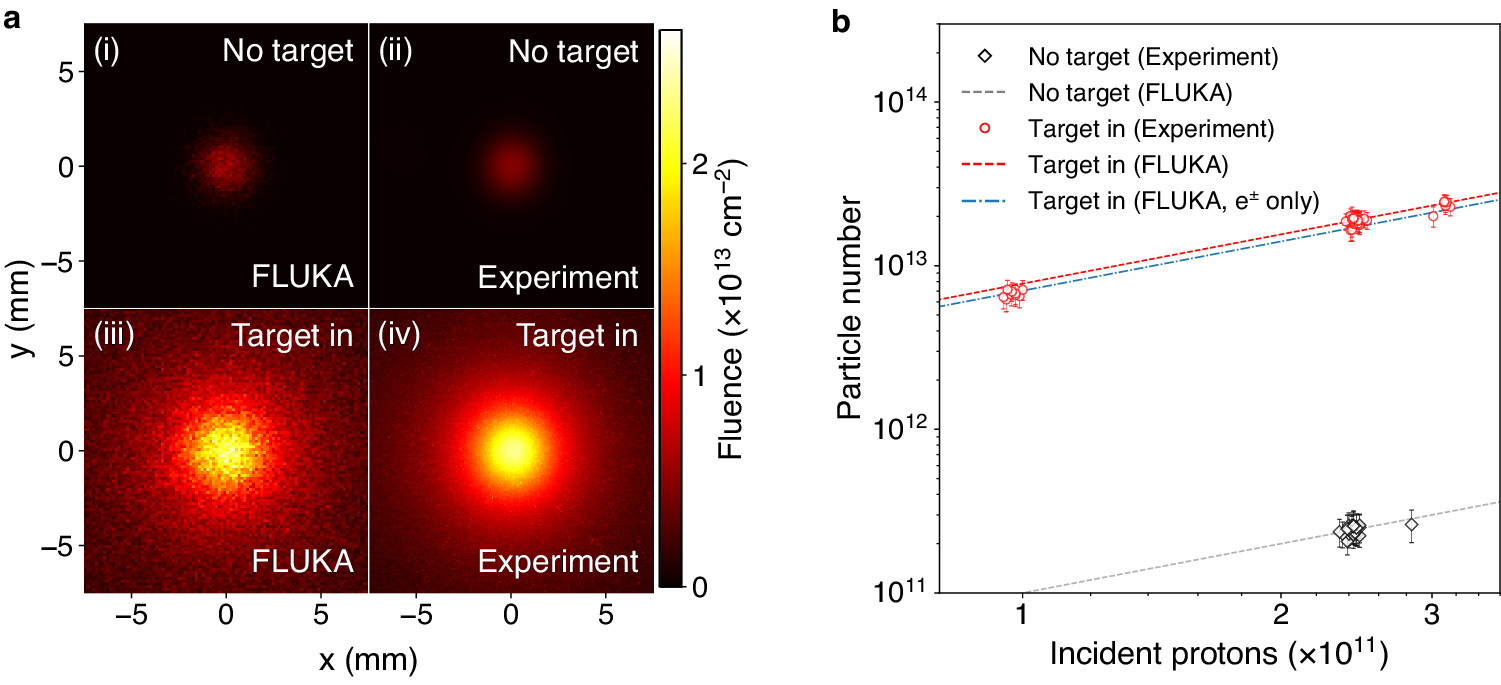

Fig. 2: Transverse beam profile imaged using a luminescence screen.
From: Laboratory realization of relativistic pair-plasma beams
a Direct comparison of FLUKA Monte-Carlo simulations with raw image data obtained when the target is irradiated and the secondary beam is produced ('Target in'), versus when the target is removed, and only the primary proton beam irradiates the screen ('No target'). An absolute fluence calibration is obtained using the known density profile of the primary proton beam. b Integrated image intensity (total intensity) from 68 shots is converted to an absolute particle number, showing the case where the target is irradiated (red circles, 46 shots), and when it is removed (black diamonds, 22 shots). The error bars reflect the standard errors of the fitted parameters for each shot. FLUKA Monte-Carlo simulations of the predicted light yield are shown for both cases (black-dashed and red-dashed lines), showing good agreement with the experimental data. The blue dot-dashed line indicates the contribution from e± in the FLUKA simulation, highlighting that this is the dominant contribution to the enhanced signal.
