Fig. 6: Comparison between modeled and observed fault properties.
From: 3D architecture and complex behavior along the simple central San Andreas fault

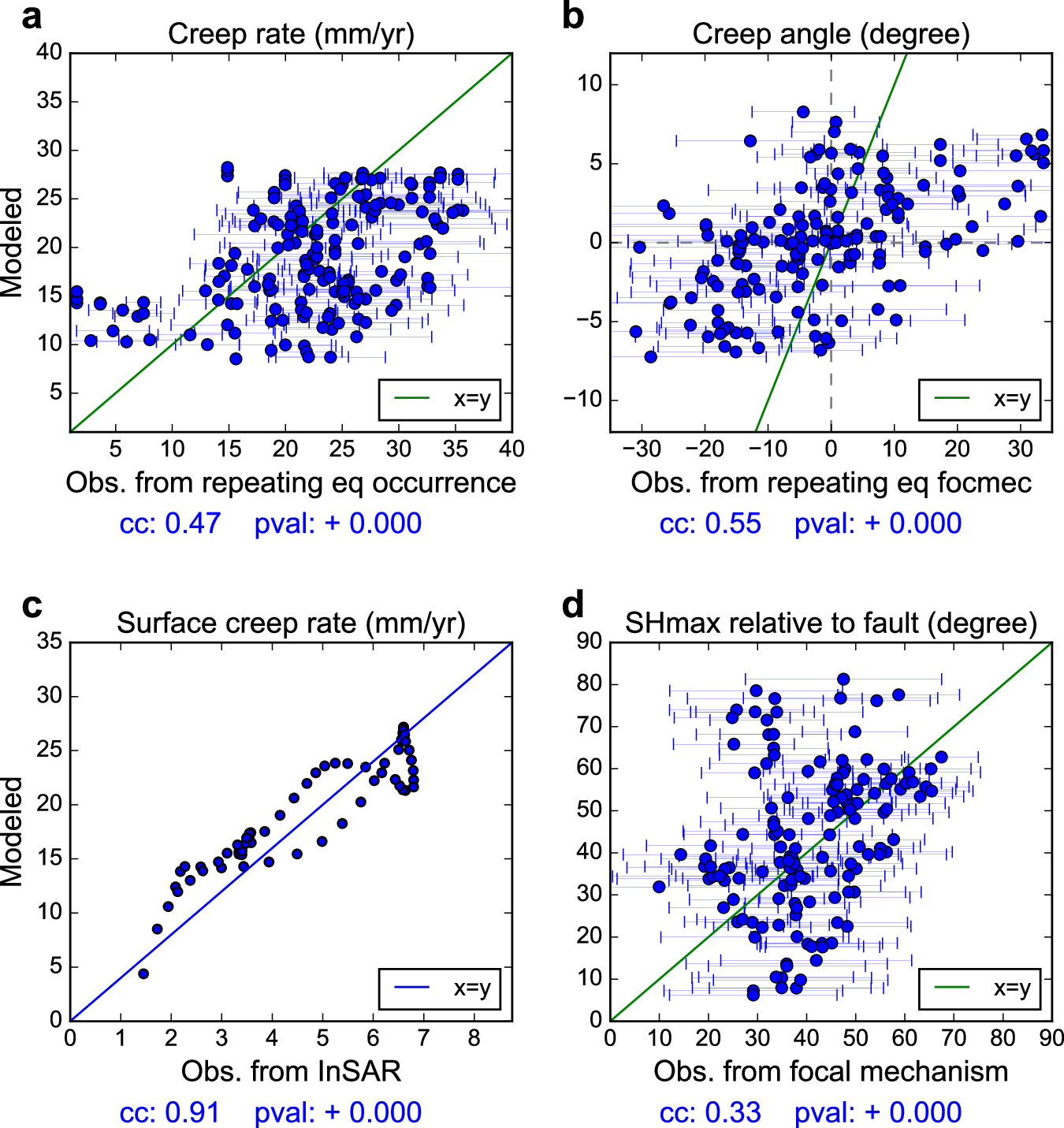

Point-to-point comparisons of the a creep rate, b creep direction, c surface creep rate, and d the angle between main fault and the off-fault maximum horizontal stress orientation (\(\theta\)) (from the area 1.5 km NE to the main fault) modeled from the fault coupling model A (Y-axes) and those estimated from a repeating earthquake occurrence rates, b repeating earthquake focal mechanisms, c InSAR LOS data, and d \({M}_{l}\ge 1.0\) focal mechanisms (X-axes). (See Figs. 4, 5b, c for the data used for comparison).
