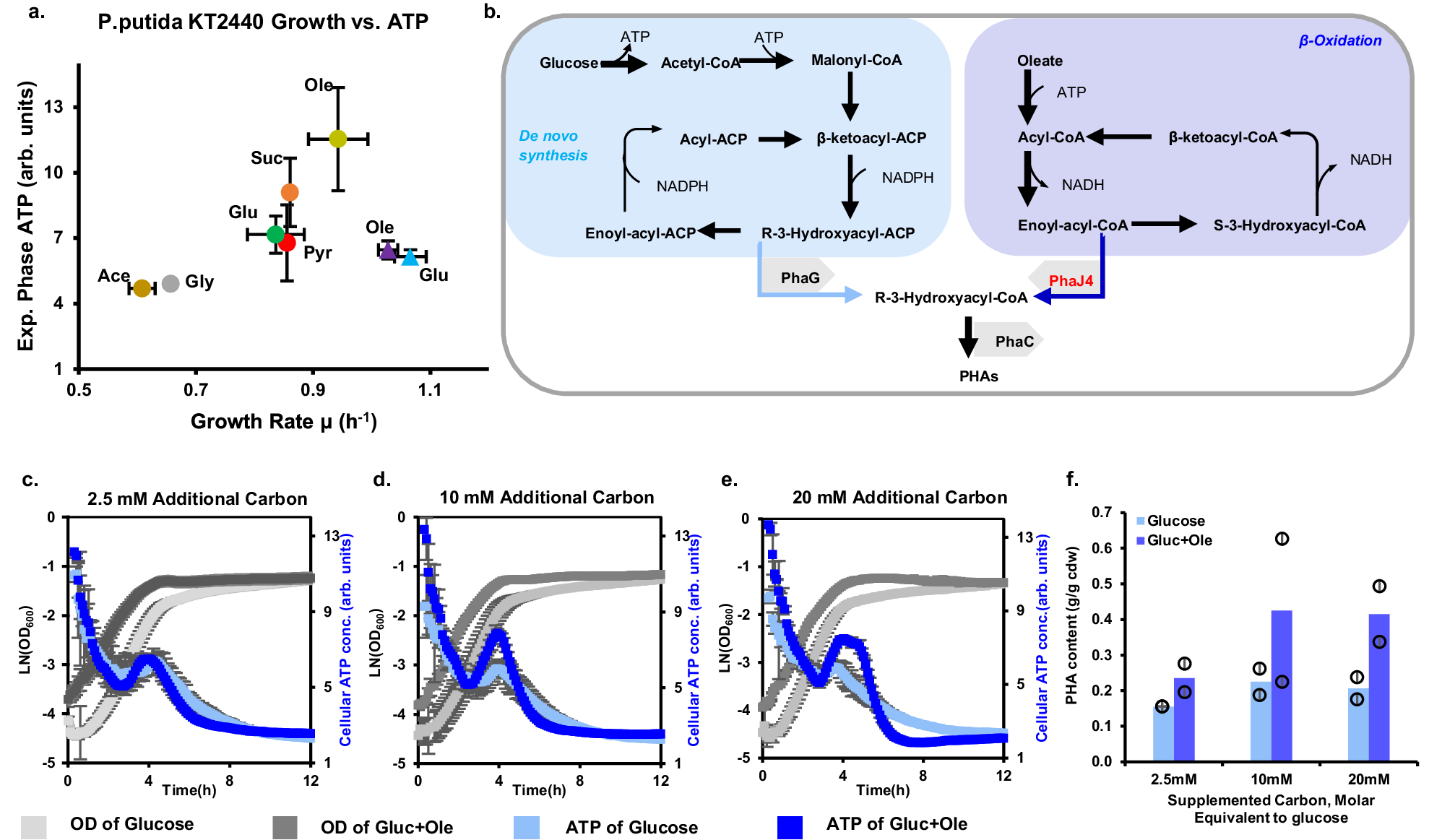

Fig. 3: ATP dynamics and PHA content of P. putida.
From: ATP biosensor reveals microbial energetic dynamics and facilitates bioproduction
a Growth rates and exponential growth phase ATP levels of the wildtype (circles) and ΔphaJ4 (square) P. putida strain. Error bars represent standard deviation (n = 3). b PHA biosynthesis pathways. c–e ATP dynamics and OD of PHA-producing P. putida cultures supplemented with different amounts of glucose or oleate. Error bars represent standard deviation (n = 3). f PHA content after 24 h fermentation in additional amounts of glucose or oleate supplementation. Error bars represent standard deviation (n = 2). Source data are provided as a Source Data file.
