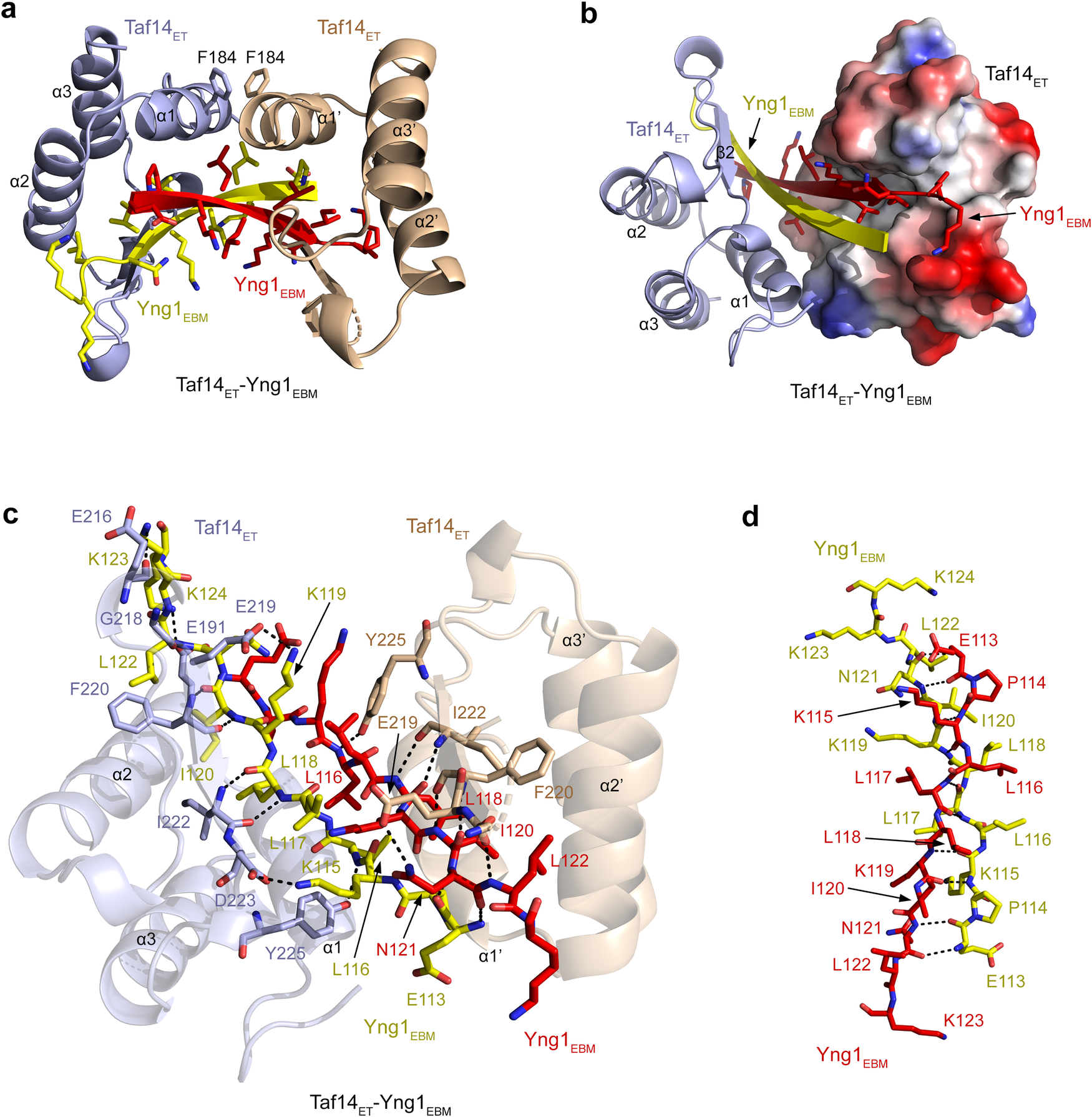

Fig. 2: Structural mechanism for the Taf14ET-Yng1EBM complex formation.
From: Molecular insight into interactions between the Taf14, Yng1 and Sas3 subunits of the NuA3 complex
a Ribbon diagram of the Taf14ET-Yng1EBM complex structure. Dimeric Taf14ET is colored light blue (monomer 1) and wheat (monomer 2), and two monomers of dimeric Yng1EBM are colored yellow and red. b The Taf14ET-Yng1EBM complex with monomer 2 depicted as a surface model colored according to its electrostatic potential (positive potential, blue; negative potential, red). c Ribbon diagram of the Taf14ET-Yng1EBM complex with two molecules of Yng1EBM shown as sticks. Residues involved in the interaction between Taf14ET and Yng1EBM are labeled. Dashed lines represent hydrogen bonds. d Residues in two Yng1EBM are shown as sticks and labeled. Dashed lines represent hydrogen bonds and salt bridges.
