Fig. 4: Biomass distribution change per zoogeographic group.
From: Future trends of marine fish biomass distributions from the North Sea to the Barents Sea

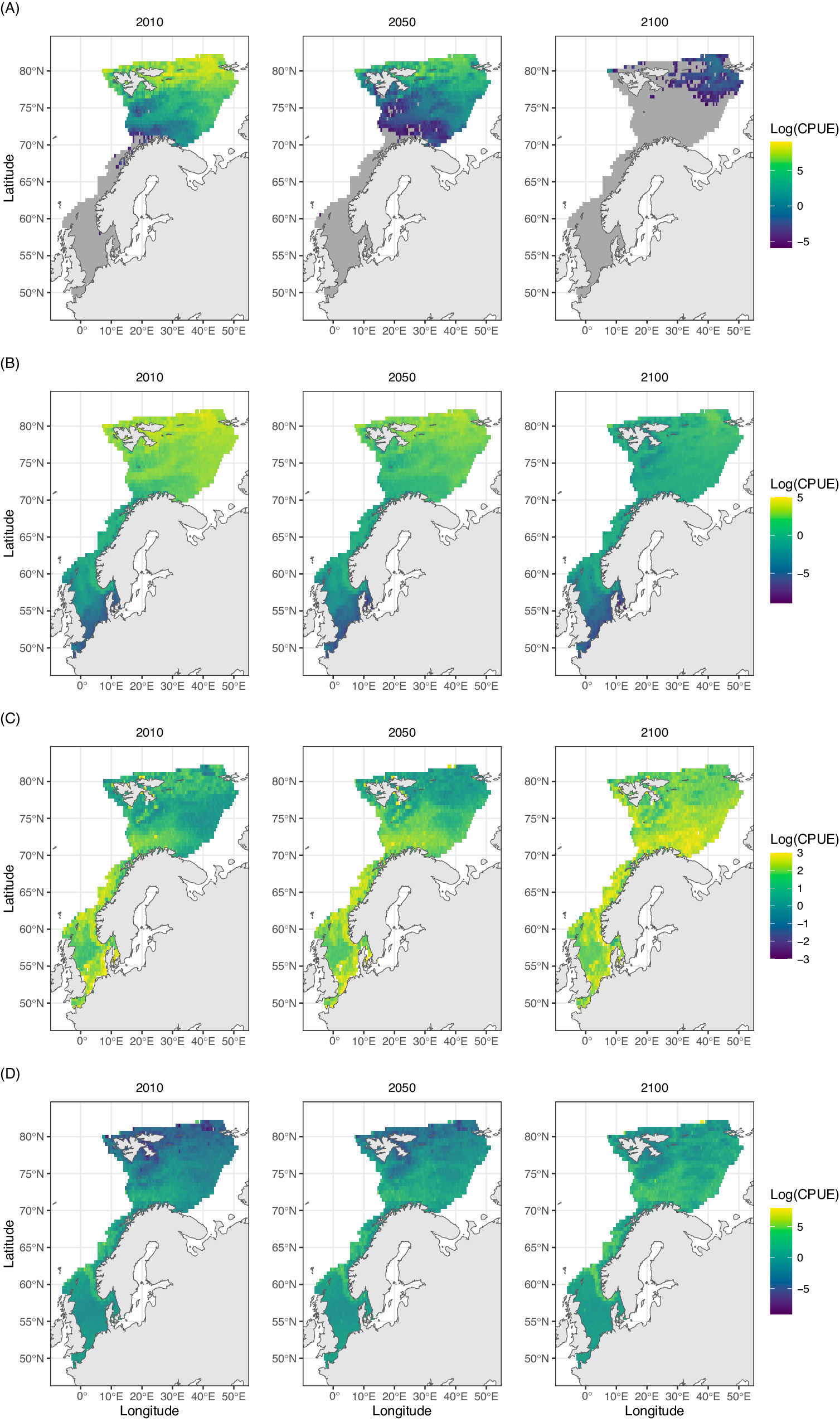

Mean future biomass projections under SSP5-8.5 for (A) arctic (n = 3 species, grey is study area), B arctic–boreal (n = 8), C boreal (n = 40), and D temperate and subtropical (n = 5) species. Projections of SSP1-2.6 and SSP2-4.5 are show in supplementary Figs. 4 and 5. Log CPUE corresponds to log of catch in the survey per unit of effort (Log fish/min).
