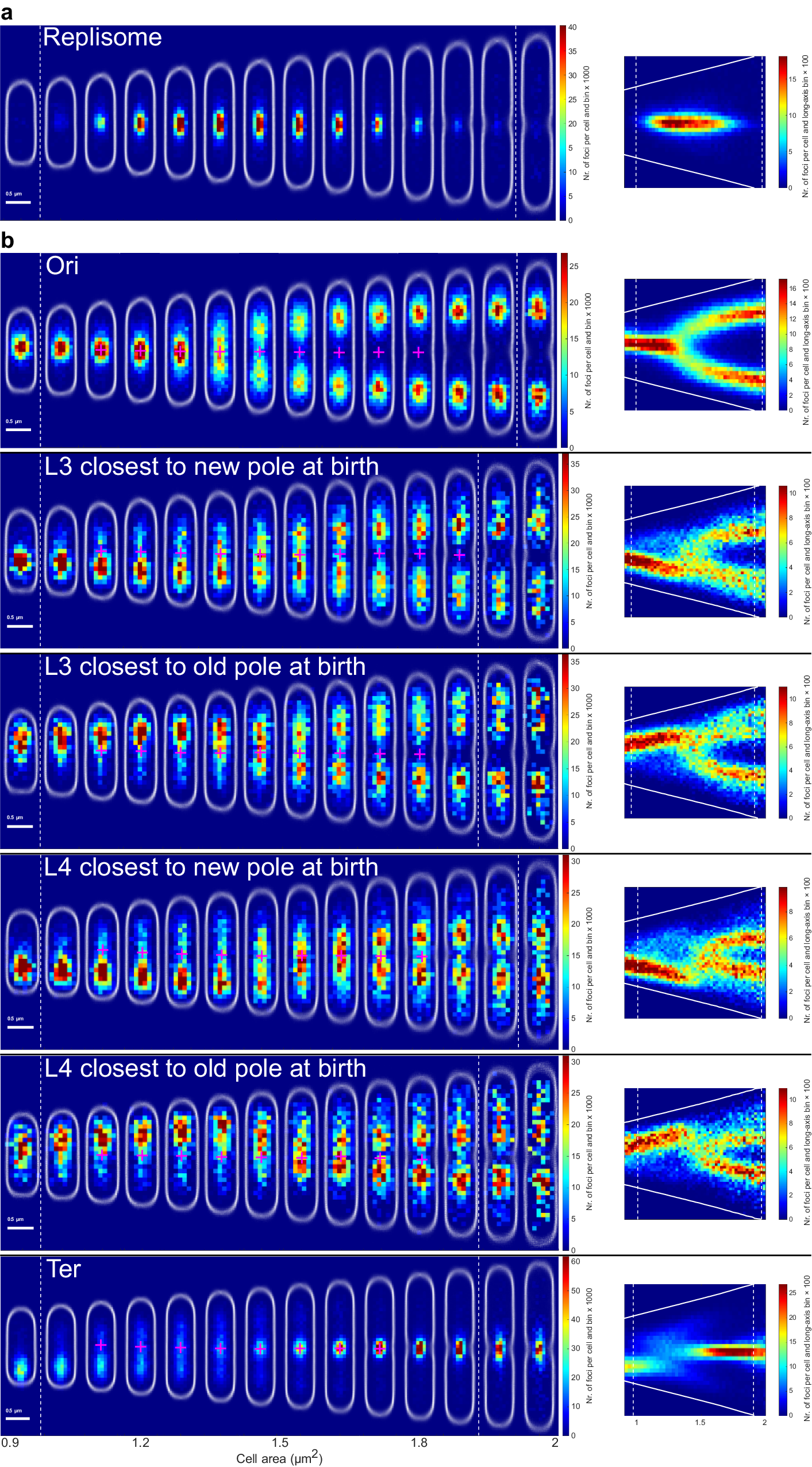

Fig. 6: Locus location distributions at slower growth rates.

Two-dimensional histograms of fluorescent foci positions along the long and short axes of the cell, as in Fig. 5, for strains with locus (b), and replisome labels (a) imaged at slower growth rates. Projections of the foci positions along the cell-long axis are shown in the panels to the right. Solid white lines indicate the average cell pole positions. These experiments were performed twice, and only data from one replicate is shown. Statistics can be found in Supplementary Dataset 1. Statistics of the number of cells and fluorescent foci in the two-dimensional histograms can be found in Supplementary Dataset 2.
