Fig. 7: Global rearrangements of locus and replisome positions over the cell cycle.

From: The Escherichia coli chromosome moves to the replisome

Fig. 7

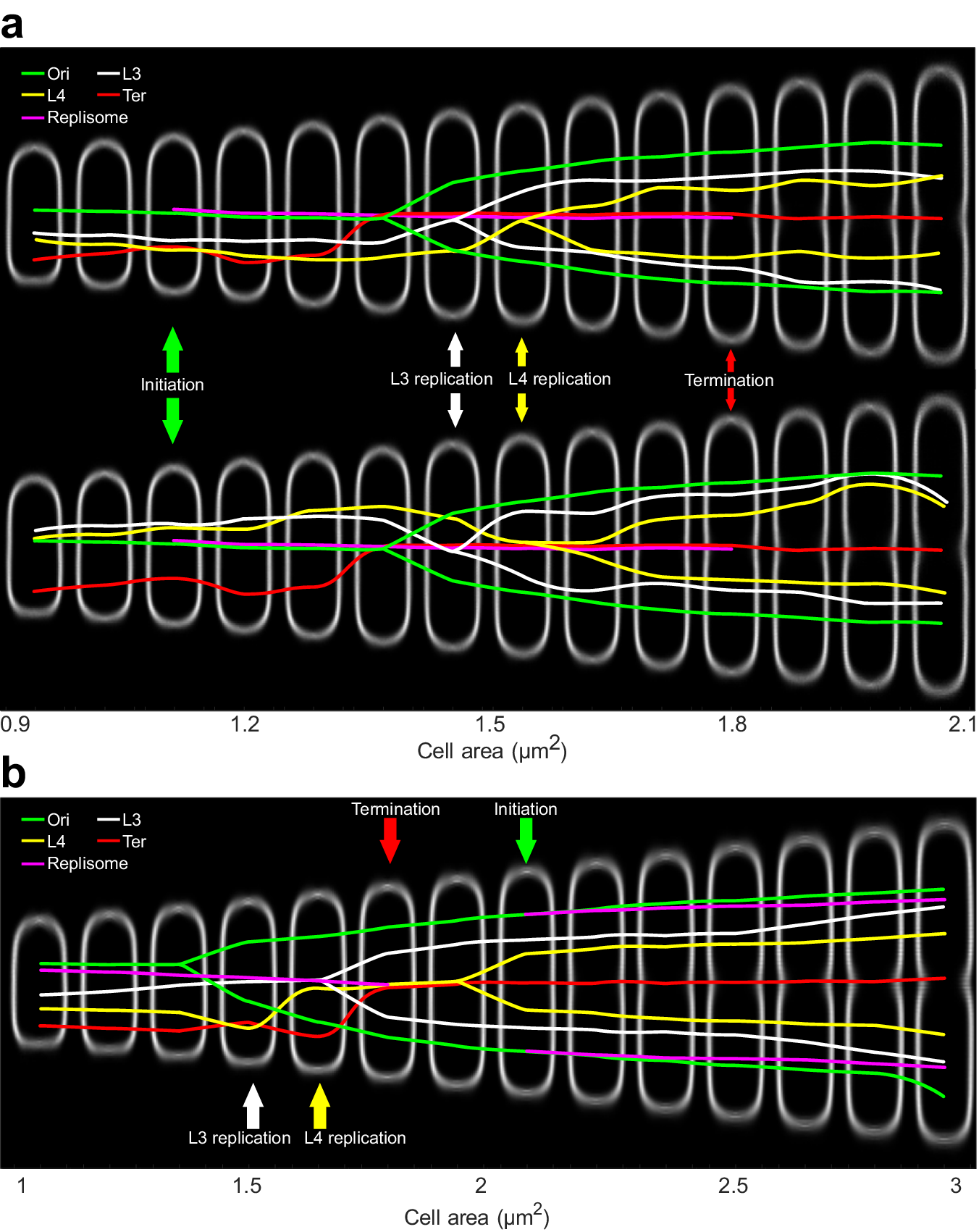

Cartoons illustrating the typical locations and replication of selected loci and replisomes in (a) slow and (b) intermediate growth. The two subpanels in (a) show the behavior of the two observed subpopulations, with L3/L4 found either closer to the new pole (top) or old pole (bottom).
