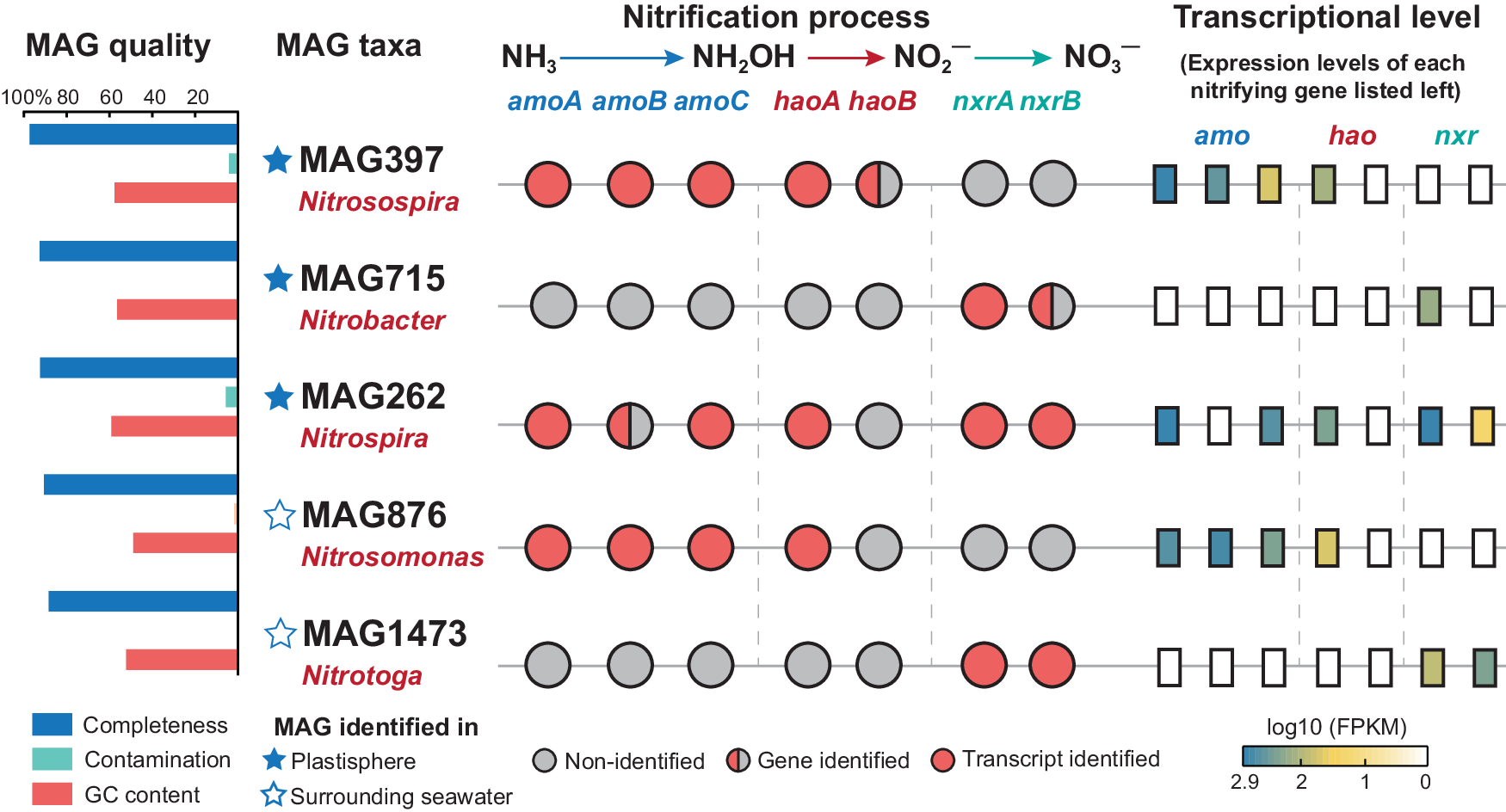

Fig. 5: Genomic and transcriptional information of the five MAGs associated with nitrification process in the plastisphere and the surrounding seawater.
From: Nitrifying niche in estuaries is expanded by the plastisphere
The MAG quality includes completeness, contamination, and GC content. Taxonomic classification is based on the Genome Taxonomy Database. The presence or absence of the seven nitrifying genes is shown at both the gene and transcript levels. The transcriptional levels of each nitrifying gene were calculated on the basis of Fragments Per Kilobase of exon model per Million mapped reads (FPKM).
