Fig. C2: Min patterns for 1 µM MinD + 5 µM MinE.
From: Addendum: Directing Min protein patterns with advective bulk flow

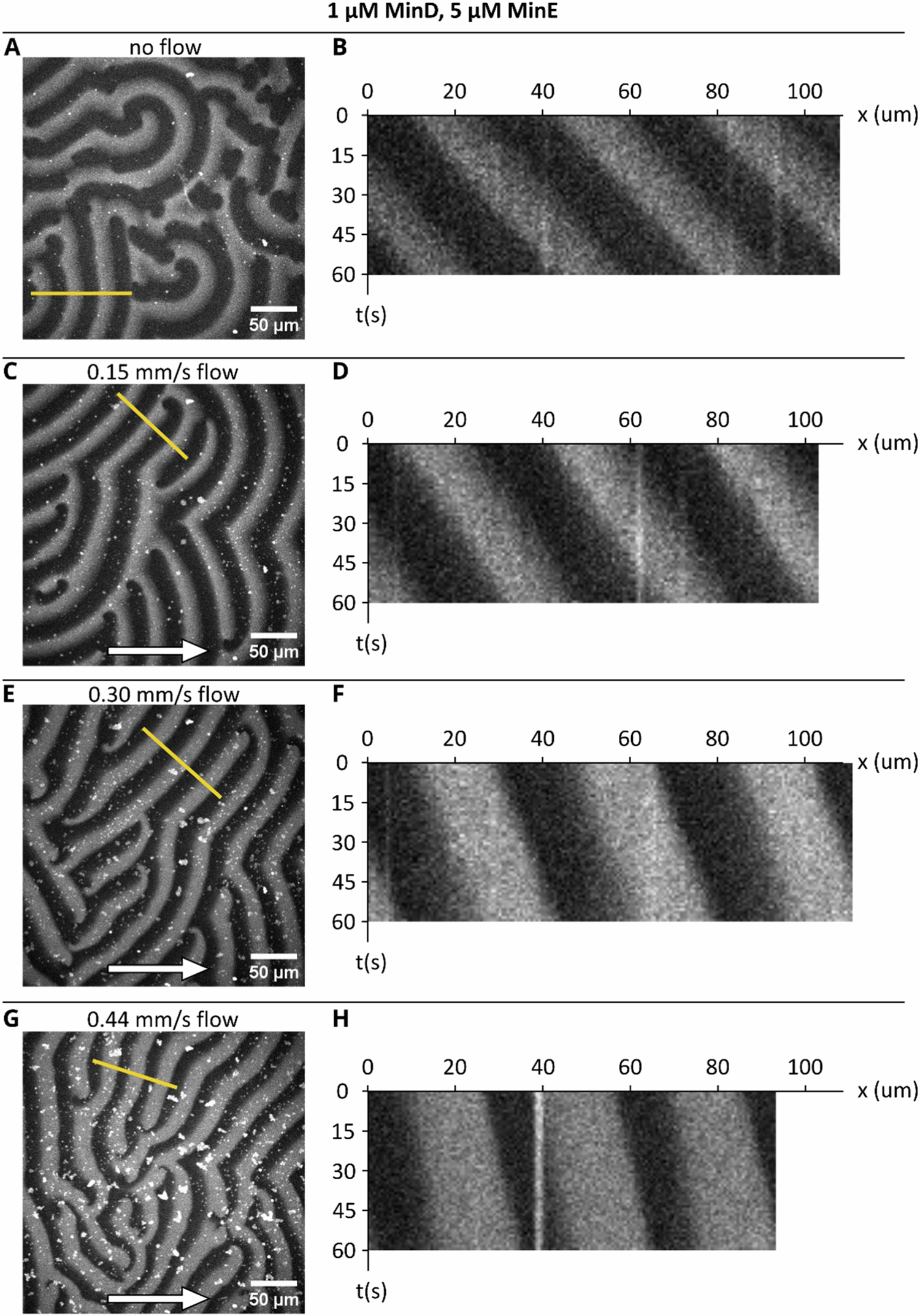

From top to bottom: Snapshots of pattern with A no flow, followed by increasing flow rates C 0.15 mm/s, E 0.30 mm/s, G 0.44 mm/s. Panels B, D, F and H show a kymograph at the line trace indicated in the corresponding image frame on the left. Flow was applied via a peristaltic pump through a closed-circle system. The acquisition was started after a waiting time of at least 15 min after changing the flow rate.
