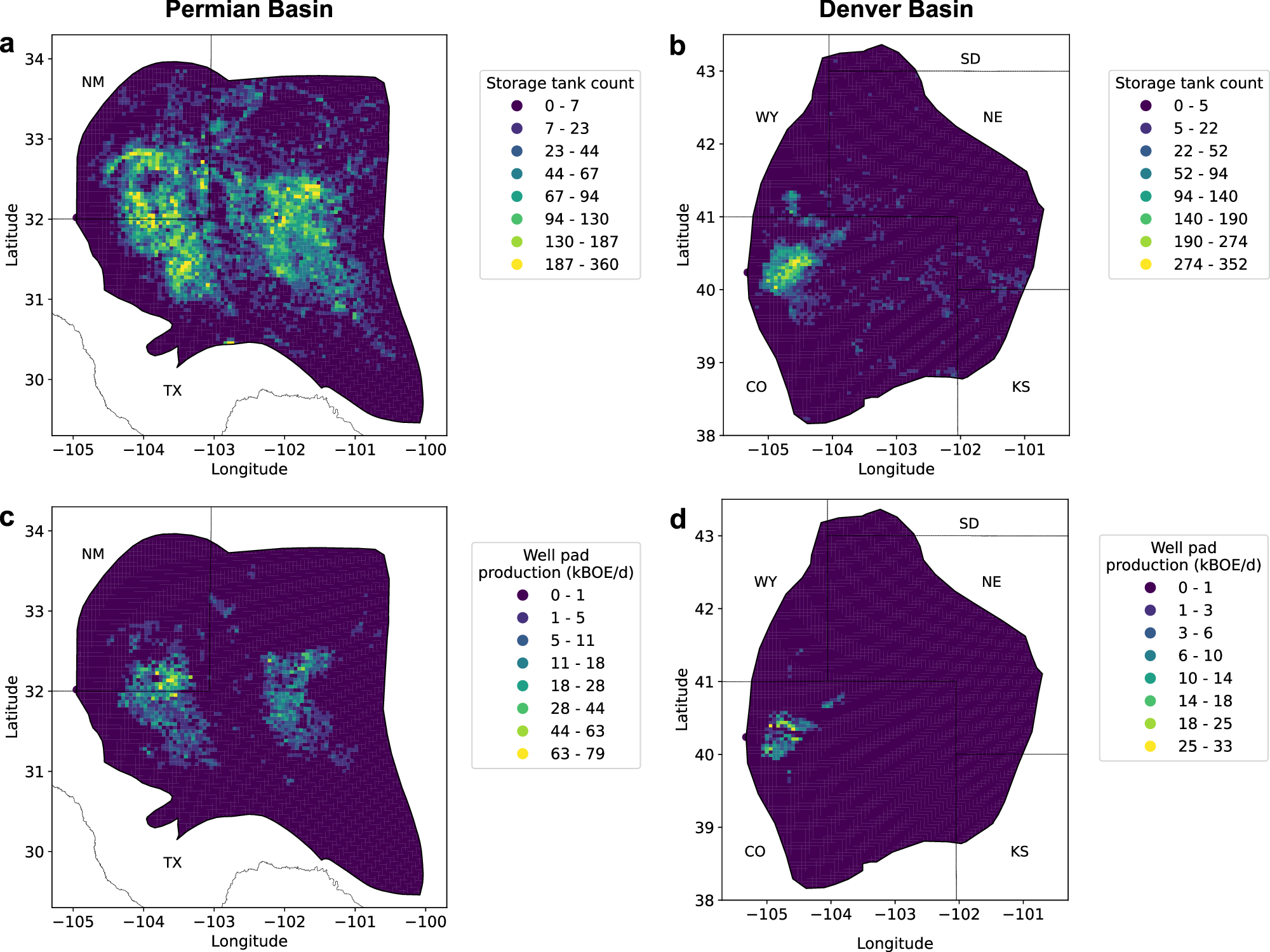

Fig. 5: Basin-level gridded density heatmaps.
From: Deep learning for detecting and characterizing oil and gas well pads in satellite imagery
Heatmaps show a, b storage tank counts and c, d well pad production measured in kilo barrels of oil equivalent per day (kBOE/d). Each grid cell represents 5 km2.
