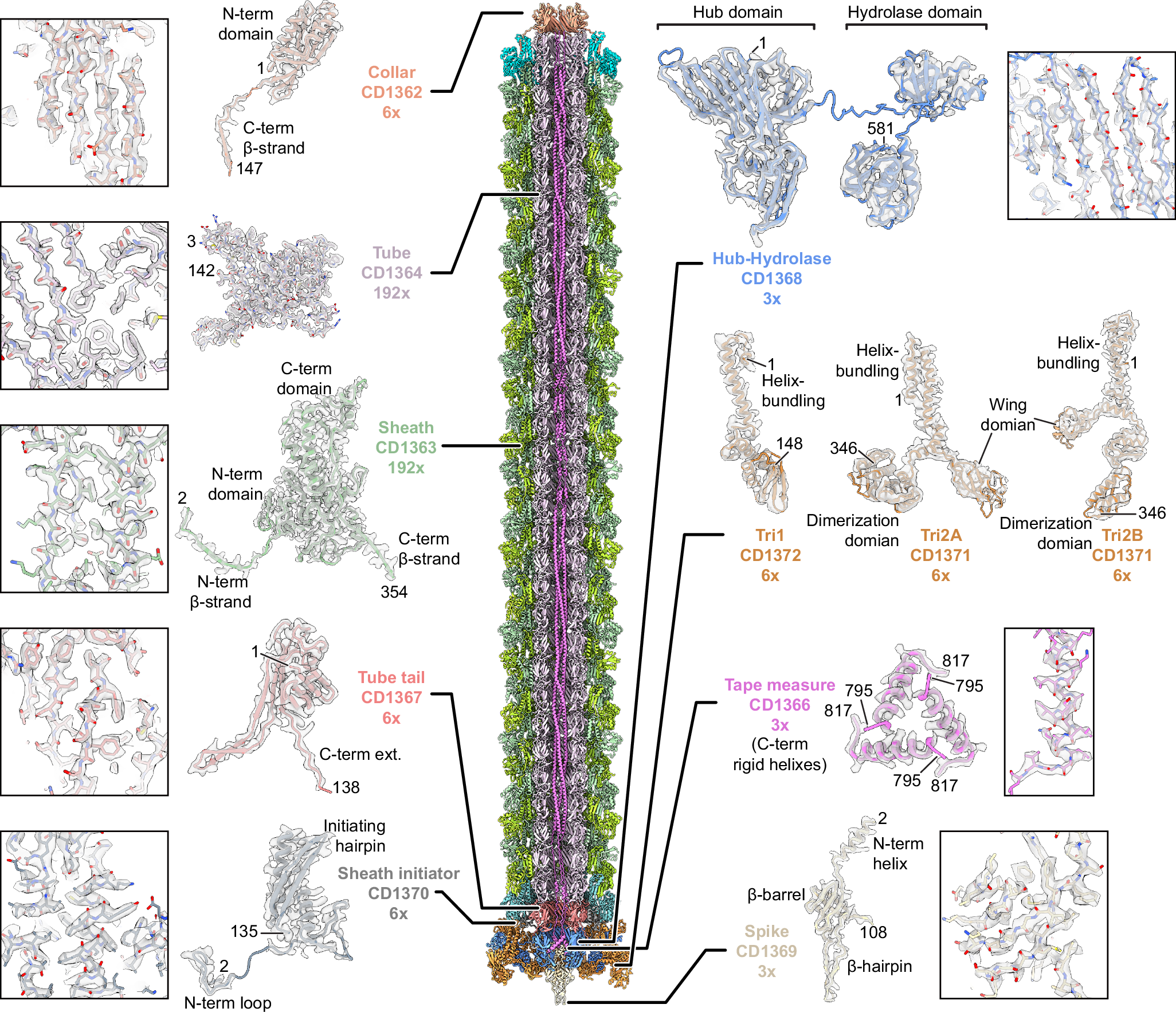

Fig. 2: Overview of the atomic model of diffocin in the pre-contracted state.
From: Atomic structures of a bacteriocin targeting Gram-positive bacteria
CryoEM densities encasing the corresponding atomic models of individual diffocin proteins in the pre-contraction state are shown on both sides of diffocin complex. Regions of the cryo-EM density map (semi-transparent densities) superimposed with atomic models (sticks) are shown in boxes, demonstrating the agreement between the observed and modeled amino acid side chains. Numbers denote chain termini.
