Fig. 1: Wet transfer process of pulsed laser deposition (PLD)-prepared black phosphorus (BP) thin film.

From: A clean transfer approach to prepare centimetre-scale black phosphorus crystalline multilayers on silicon substrates for field-effect transistors

Fig. 1

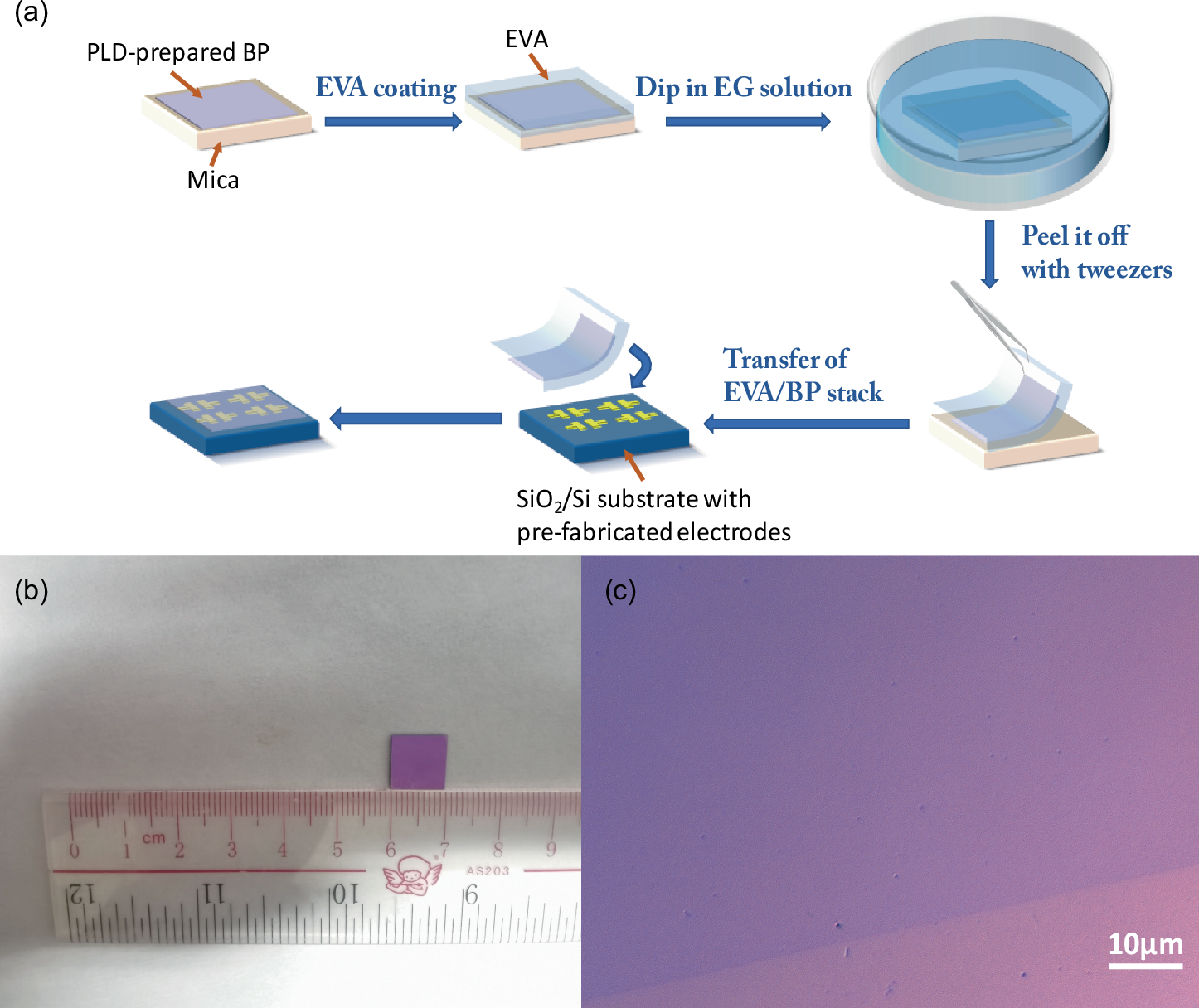

a Schematic illustration of ethylene-vinyl acetate (EVA)-assisted wet transfer process of PLD-prepared BP thin film in ethylene glycol (EG) solution. b Optical and (c) microscopic images of wet-transferred BP on SiO2/Si substrate.
