Fig. 5: Heartbeat analysis for each case.
From: Existence of multiple transitions of the critical state due to anesthetics

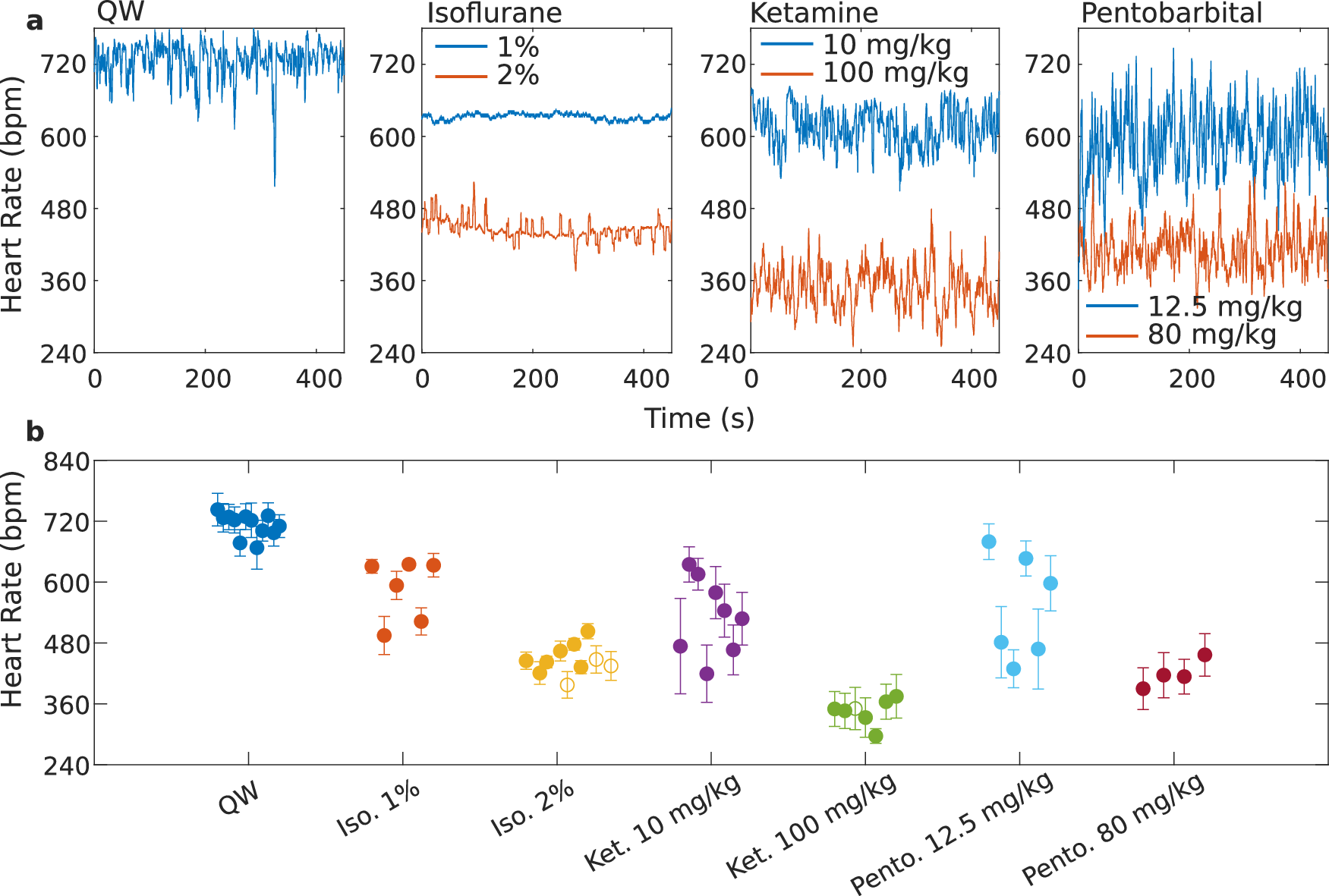

a Continuous physiological monitoring: Examples of extracted heart rate from the raw calcium recordings as a function of time for quiet wakefulness (QW) and the various drugs considered for different dosages. b The average heart rate for each recording, across each drug case, and the QW control. Error bars correspond to one standard deviation of the heart rate across the individual recording, which quantifies the variability of the heart rate and indicates stationary behavior over the duration of the recordings. Hollow circles in isoflurane 2% and ketamine 100 mg/kg denote the awake-like cases. Source data are provided as a Source data file.
