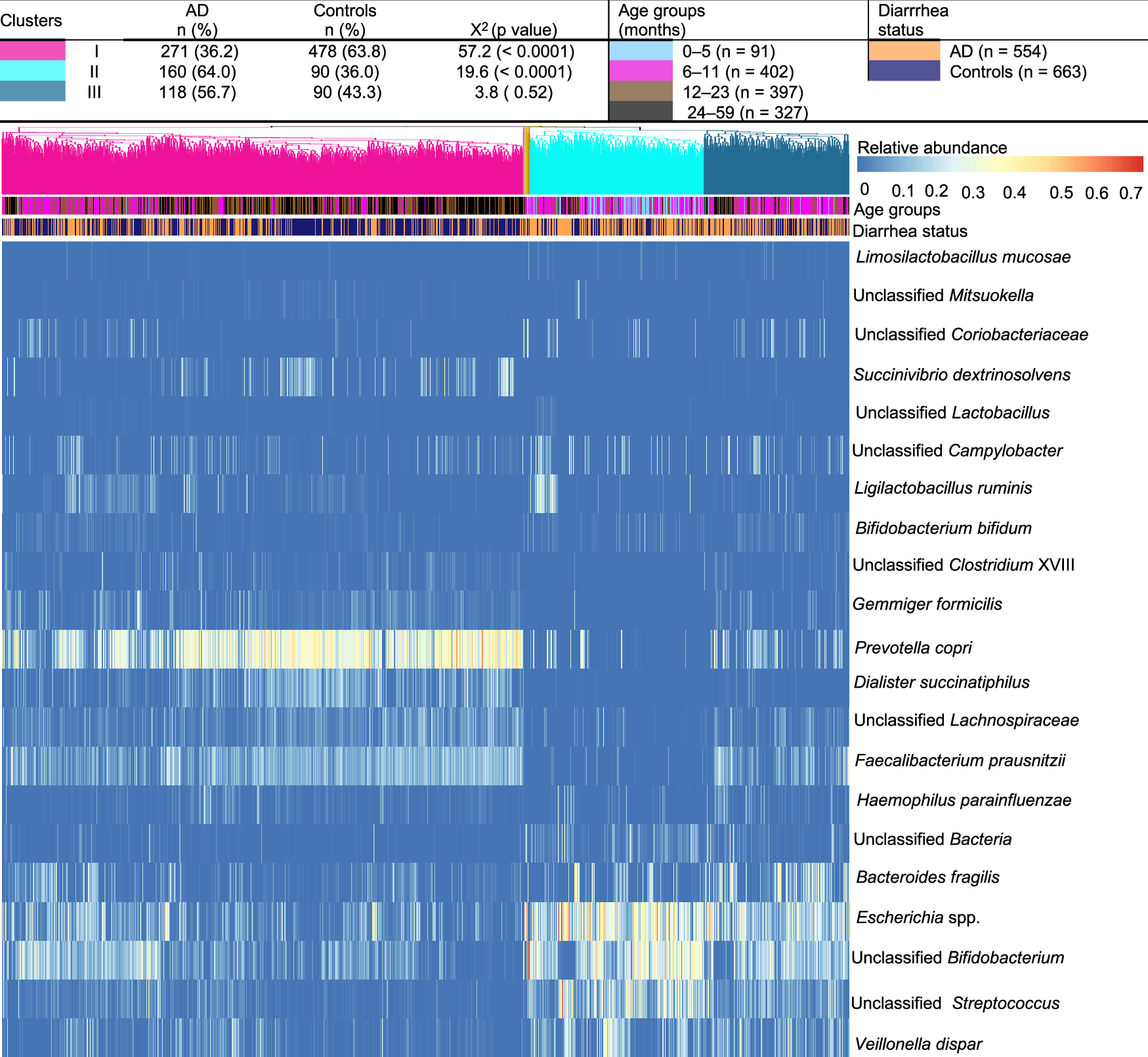

Fig. 7: Ethiopian children aged 0–59 months with AD are characterized by specific gut microbiome profiles when compared to non-diarrheal controls.

From: Gut microbiota patterns associated with duration of diarrhea in children under five years of age in Ethiopia

Fig. 7: Ethiopian children aged 0–59 months with AD are characterized by specific gut microbiome profiles when compared to non-diarrheal controls.

Heatmap depiction of differentially abundant taxa between AD cases and non-diarrheal controls as determined by DESeq2 (two-sided Wald test) differential abundance testing (q < 0.05 corrected for multiple testing by the Benjamini-Hochberg method) and adjusted for age group, enrollment season, enrollment site, sex, WAM index, current breastfeeding, and diarrhea in the previous month. Subsequently, differences were tested by two-sided Wilcoxon rank sum test and corrected by the Benjamini-Hochberg method resulting in the stated exact q values found in Supplementary Table 2. Clusters: de novo clustering of the AD cases and non-diarrheal controls using Canberra distances metrics and the proportions of AD cases and non-diarrheal controls are determined by Chi-square test (two-sided) in each cluster with unadjusted p values.
