Fig. 6: Origin of regioselectivity through hydrogen bonding interactions in RDS.

From: Hydrogen bonding template enables remote meta-C–H alkenylation of nitroarenes with electron-deficient alkenes

Fig. 6: Origin of regioselectivity through hydrogen bonding interactions in RDS.The alternative text for this image may have been generated using AI.

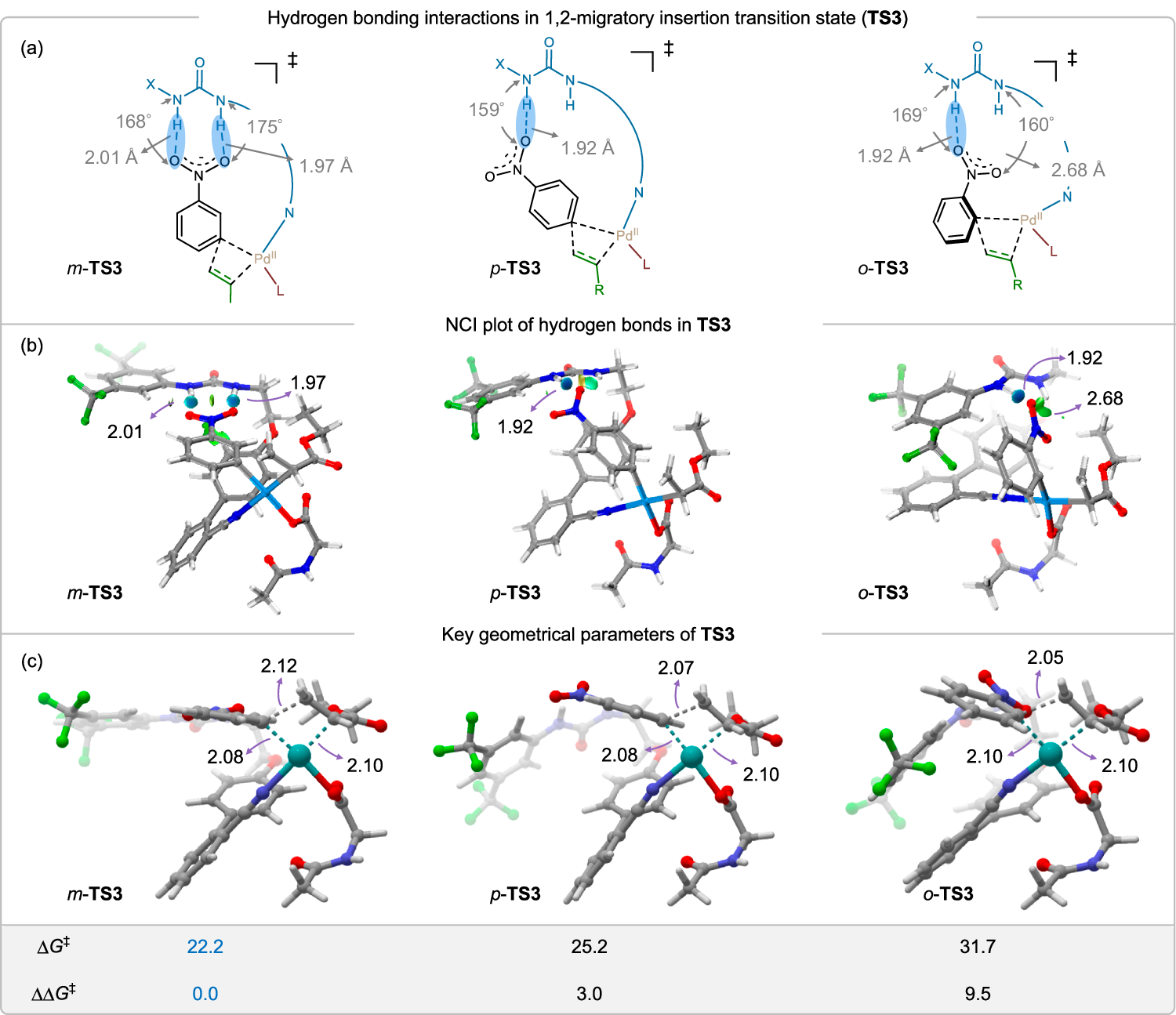

a Key geometrical parameters of hydrogen-bonding interactions in 1,2-migratory insertion TS (TS3), b NCI plots indicating hydrogen bonds (the disks in the NCI plot denotes H-bonds), and c key geometrical parameters of the meta-, para-, and ortho- selective TS3.
