Fig. 3: Results for the partial least squares analysis of bony labyrinth shape and the contextual variables (PLS 1 and 2).

From: Convergent evolution in Afrotheria and non-afrotherians demonstrates high evolvability of the mammalian inner ear

Fig. 3

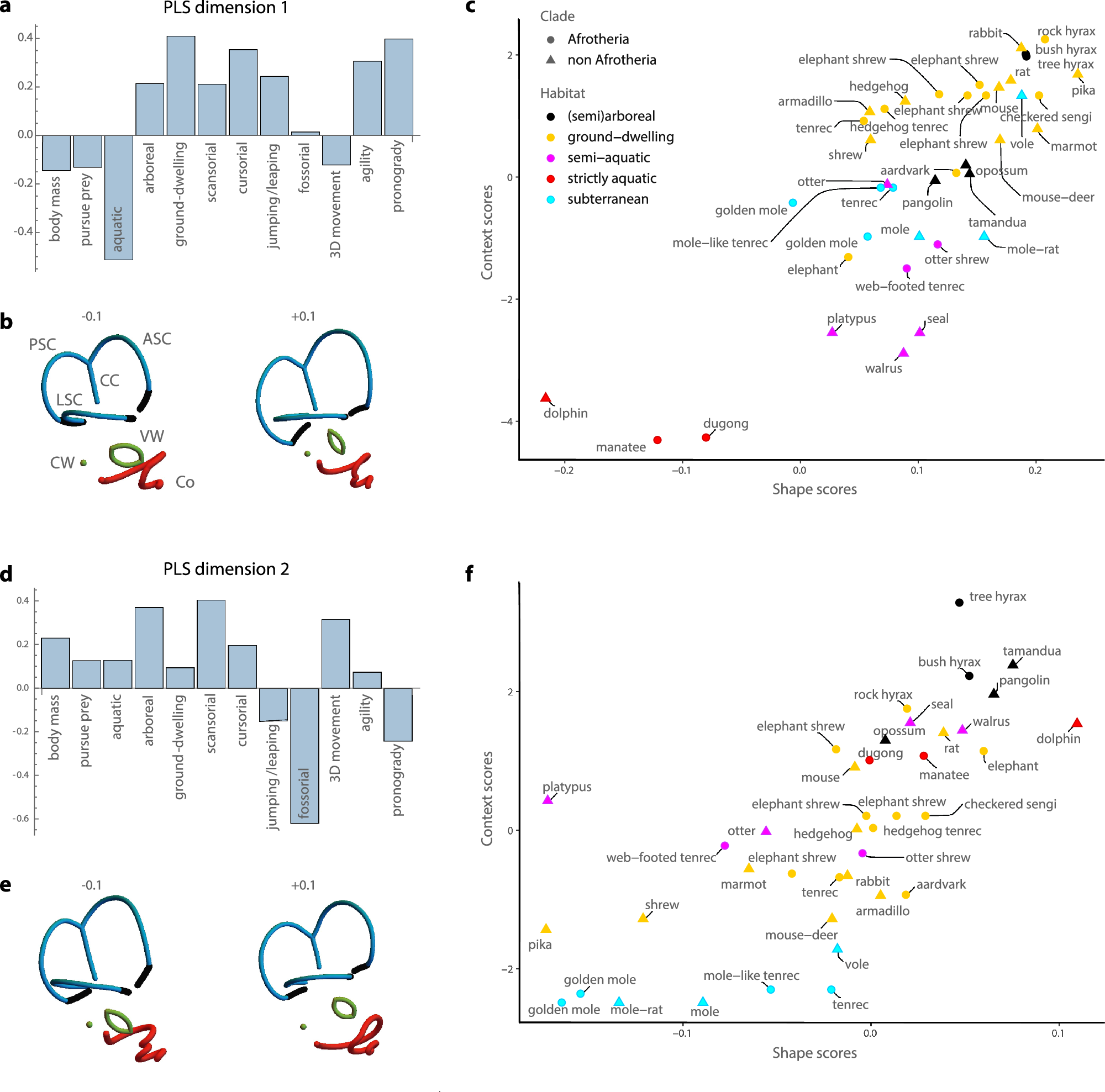

First two dimensions of the two-block partial least squares (2B-PLS) analysis between the Procrustes shape coordinates of the bony labyrinth and the 12 contextual variables. a, b Loadings for the first PLS dimension, representing the shape pattern and the contextual pattern with highest covariance. LSC, ASC, and PSC correspond to lateral, anterior, and posterior semicircular canals (in blue), Co refers to the cochlea (in red), and VW and CW to the vestibular and cochlear windows (in green). The orientation of the bony labyrinths is the same as in Fig. 2b. c Scatterplot of the corresponding contextual and shape scores. The colour code corresponds to five habitat types which were assigned to species as a visual aid only; this grouping was not used for computing the PLS. Note that when a species’ common name appears several times, it corresponds to different species. d–f Loadings and scores for the second PLS dimension. Source data are provided in the Source Data file.
