Fig. 5: High atomic vacancy MoS2 decreases oxidative stress and enhances mitochondrial bioenergetics. | Nature Communications

Fig. 5: High atomic vacancy MoS2 decreases oxidative stress and enhances mitochondrial bioenergetics.

From: Atomic vacancies of molybdenum disulfide nanoparticles stimulate mitochondrial biogenesis

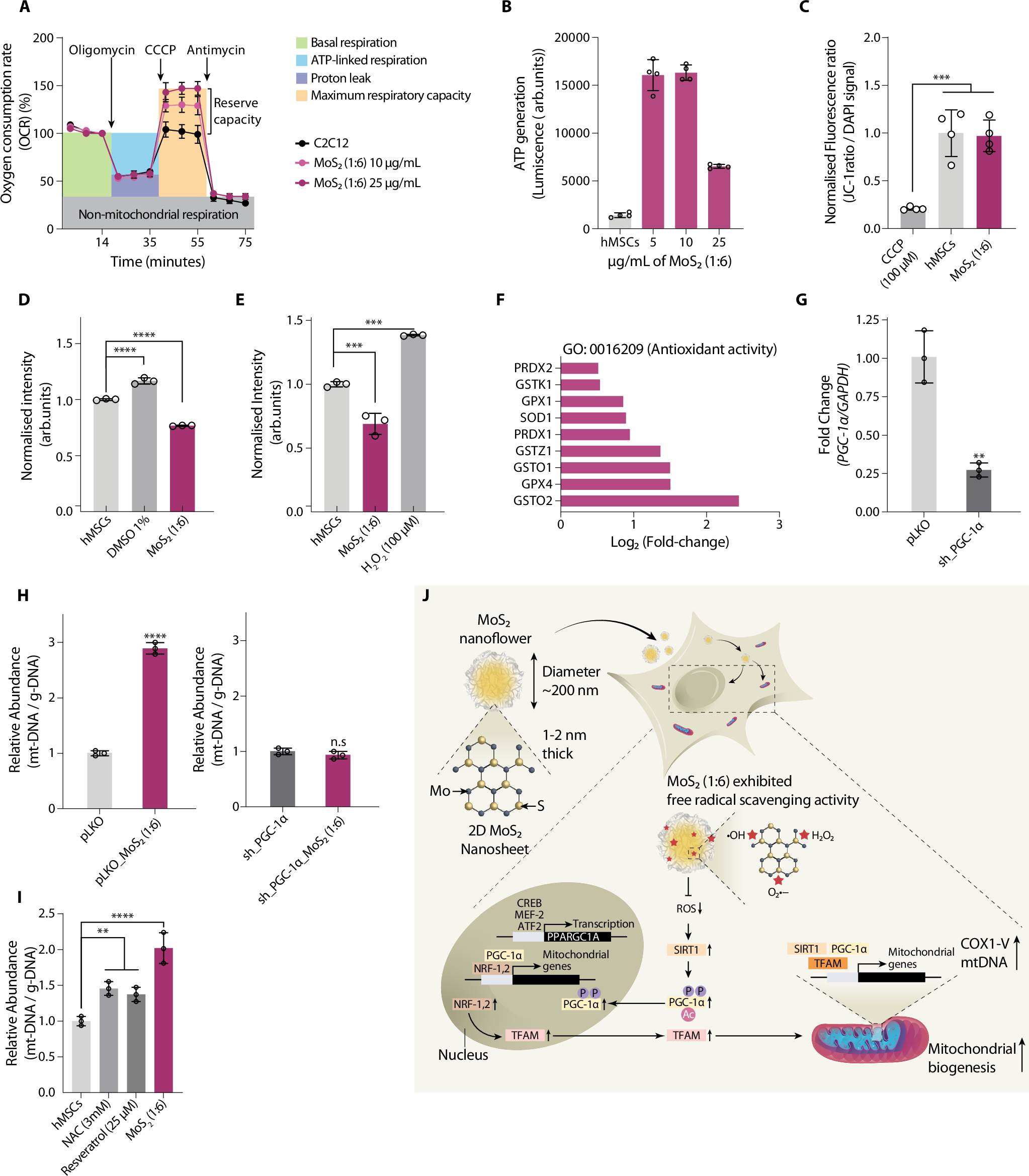

Fig. 5

A The effect of MoS2 on OCR was determined in C2C12 cells treated with different concentrations of MoS2 (1:6) (0, 10 and 25 µg/mL). A concentration-dependent increase in spare respiratory capacity was observed, indicating the ability of MoS2 to activate mitochondrial respiration machinery. (n = 3 biological replicates). B Evaluation of ATP levels in cells treated with MoS2 (1:6) suggests a marked increase in ATP levels, compared to untreated hMSCs. (n = 4 biological replicates). C Effect of MoS2 on mitochondrial membrane potential. Cells treated with MoS2 (1:6) showed no significant changes in mitochondrial membrane potential as compared to untreated cells. Cell number variation was normalized using nuclear stain (DAPI). (n = 4 biological replicates). D The amount of intracellular ROS is determined before and after treatment with MoS2 (1:6). MoS2 treatment significantly suppressed ROS production. (n = 3 biological replicates). E The amount of mitochondrial ROS is determined using MitoSox before and after treatment with MoS2 nanoflowers (1:6). MoS2 treatment significantly suppressed mitochondrial ROS production. (n = 3 biological replicates). F RNA-seq data demonstrates the upregulation of multiple genes related to antioxidant activity (GO: 0016209). G PGC-1α expression in C2C12 transduced with either empty vector (pLKO) or shRNA targeting PGC-1α (n = 3 biological replicates). H Evaluation of relative mitochondrial copy number in transduced cells following treatment with MoS2 for 72 h. (n = 3 biological replicates). I Mitochondrial copy number in hMSCs following treatment with N-acetyl cysteine (NAC), resveratrol, and vacancy-rich MoS2. Cells were treated with either NAC (3 mM), resveratrol (25 µm), or MoS2 (1:6) (25 µg/mL) for 72 h. (n = 3 biological replicates). J Proposed mechanism of action of MoS2 with high atomic vacancies on triggering mitochondrial biogenesis. It is expected that atomic vacancies of MoS2 exhibit free radical scavenging activity through rapid reactions with reactive oxygen species (ROS), including hydrogen peroxide (H2O2), superoxide anions (O2•−), and hydroxyl radicals (OH). Reduction in intracellular ROS due to the presence of atomic vacancies on MoS2 is expected to trigger the SIRT1/PGC1α/NRF2 pathway. For (A), (B), (C), (D), (E), (G), (H), and (I), data represented as mean ± SD. For (C), (D), (E), (I) Statistical significance was determined using one way ANOVA with post hoc Tukey test. For (G), (H) Statistical significance was determined using a two-tailed student t test. For all data sets n.s. p > 0.05, *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001.
