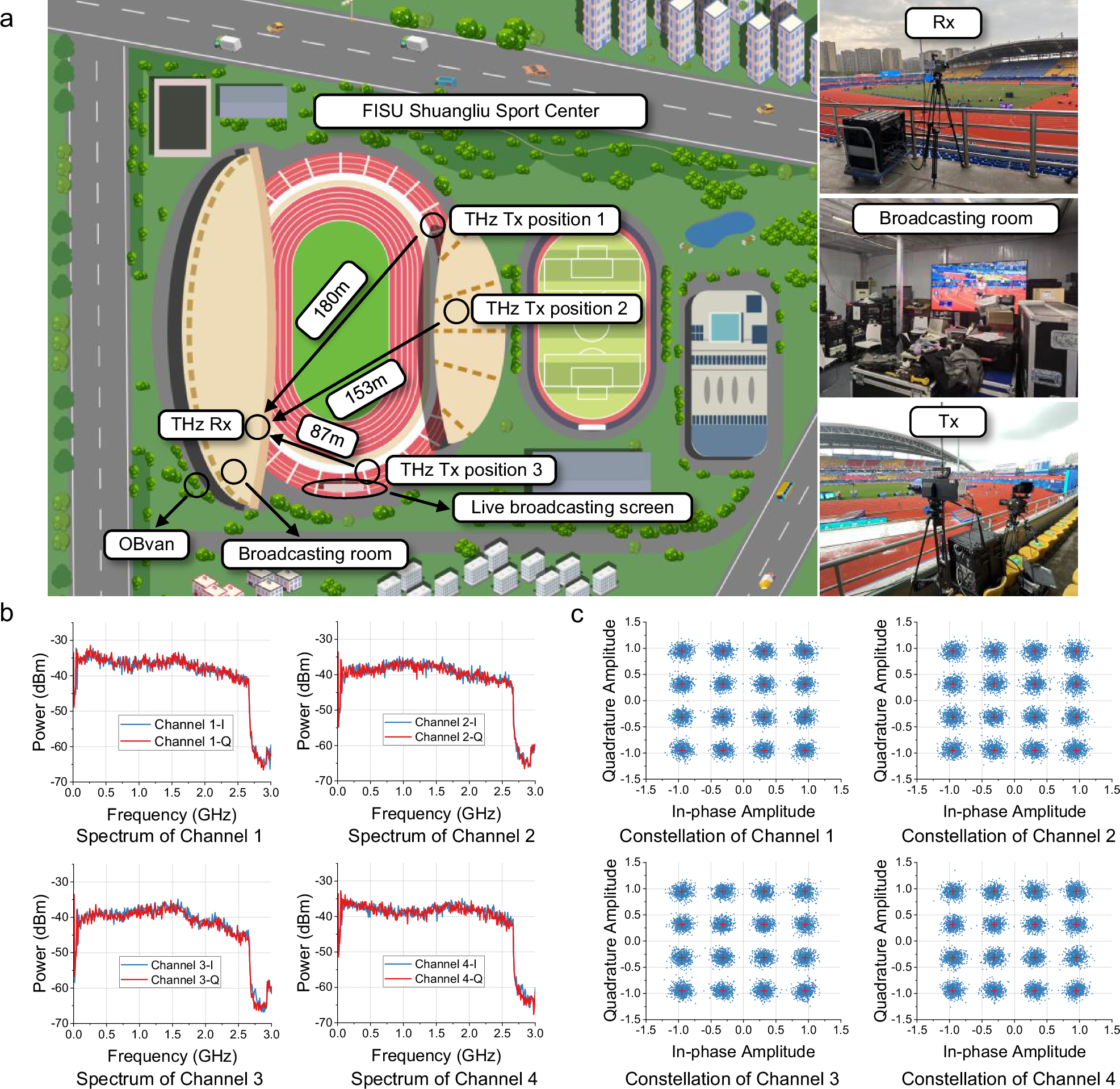

Fig. 4: Field deployment and test results.

a Location information of each component of the stadium. There are three Txs located at different positions, each of which is responsible for a specific area, Rx is placed across the field on the other side. b Accepted spectrum for each 4K video streaming channel. c Constellation maps for each 4K video streaming channel. Source data of (b) and (c) is provided as a Source Data file and named as “Fig. 4-b” and “Fig. 4-c”.
