Fig. 4: Architectural opportunities for automated floor plan design.
From: A hypergraph model shows the carbon reduction potential of effective space use in housing

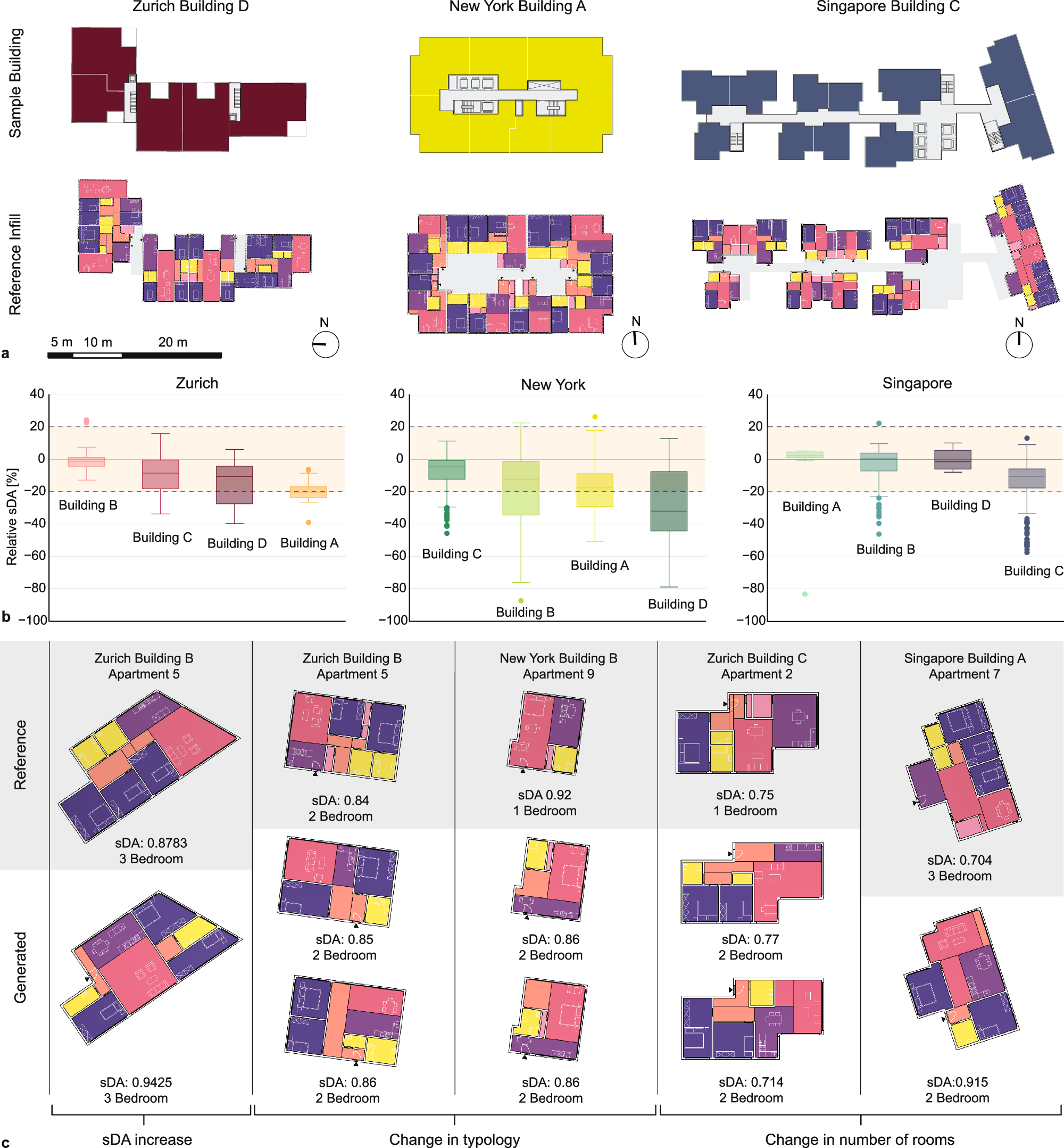

Three sample buildings with reference floor plans are being replaced by hypergraph-generated floorplans (a) (all buildings are defined in Supplemental Figs. 10–12). A plot showing the relative sDA performance of all successful floor plans with equal or more rooms (b). Comparing reference floor plans with artificially generated floor plans within the same boundary highlights different architectural opportunities (c).
