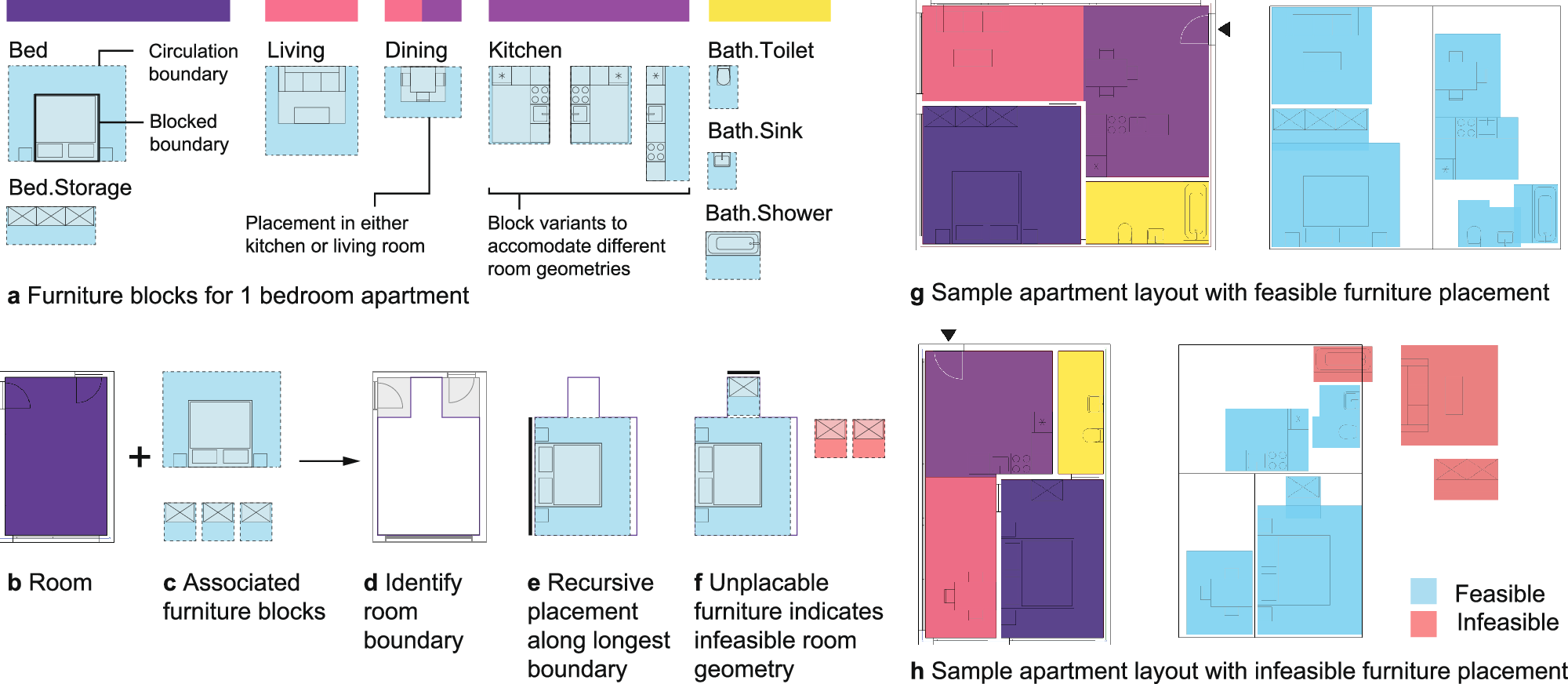

Fig. 7: Spatial evaluation of floor plan.
From: A hypergraph model shows the carbon reduction potential of effective space use in housing
Furniture blocks that have to be placed inside an apartment to create a valid 1-bedroom unit are shown in (a). A sample placement of furniture for a bedroom is shown in (b–f), where a bed and storage are placed along a room boundary, and two storage units remain unplaceable, rendering the layout infeasible. A sample layout with feasible furniture placement is shown in (g) and one with infeasible placement in (h).
