Fig. 5: Calculated reaction activation energies and proposed OER mechanisms.

From: {Co4O4} Cubanes in a conducting polymer matrix as bio-inspired molecular oxygen evolution catalysts

Fig. 5

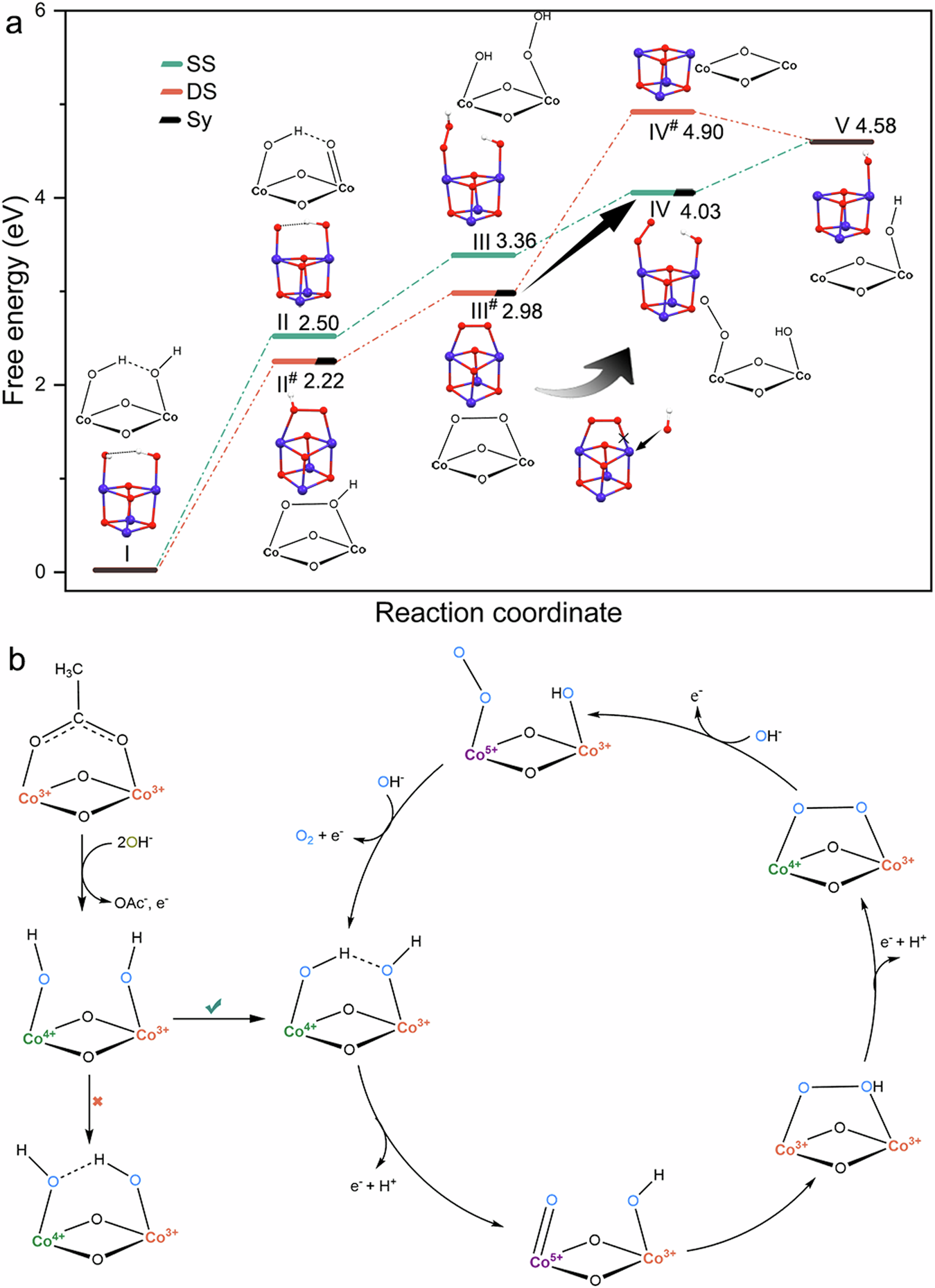

a Calculated energy profiles of SS (green), DS (orange), and Sy (black) pathways was modeled using the Perdew-Burke-Ernzerhof functional within the framework of the generalized gradient approximation. Relative electronic energies are given in eV. b Proposed OER mechanisms according to the calculated Sy pathway.
