Fig. 3: Link of sea ice production in the Terra Nova Bay polynya with the Southern Annular Mode (SAM).
From: Evidence for large-scale climate forcing of dense shelf water variability in the Ross Sea

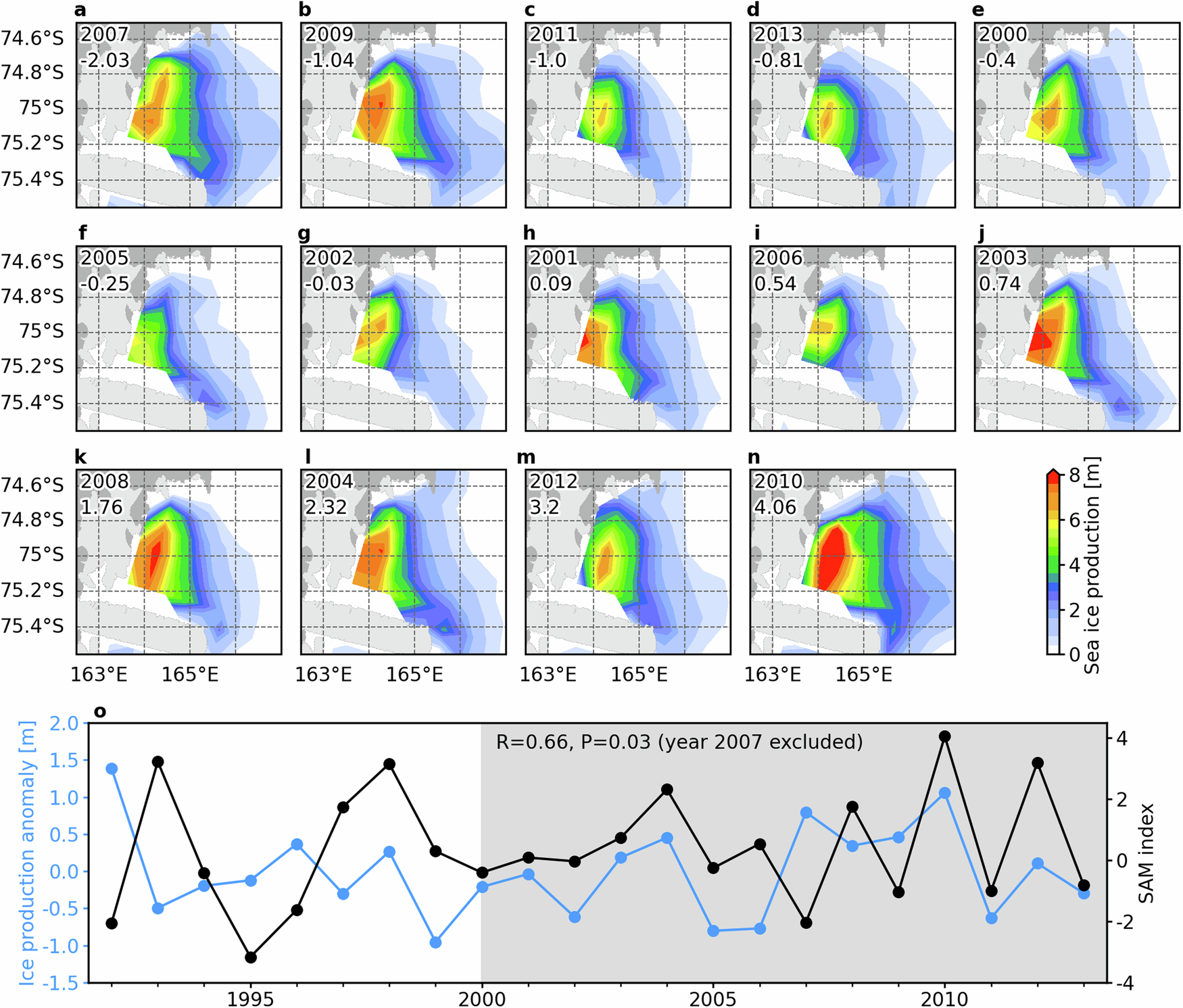

a–n, Cumulative sea ice production from June to August in each year of 2000–2013 over the Terra Nova Bay. The years are arranged in the order of increasing austral-winter SAM index, which is labeled in the upper left corner of each panel. o Time series of cumulative sea ice production over winter and the winter SAM index. Shading indicates the time period when a significant correlation between the variations of sea ice production and SAM is detected.
