Fig. 5: Product rotational distributions and their correlations with the scattering angles.

From: Frustrated charge transfer in vibrationally inelastic Ar++N2 collisions via hard collision glory scattering

Fig. 5

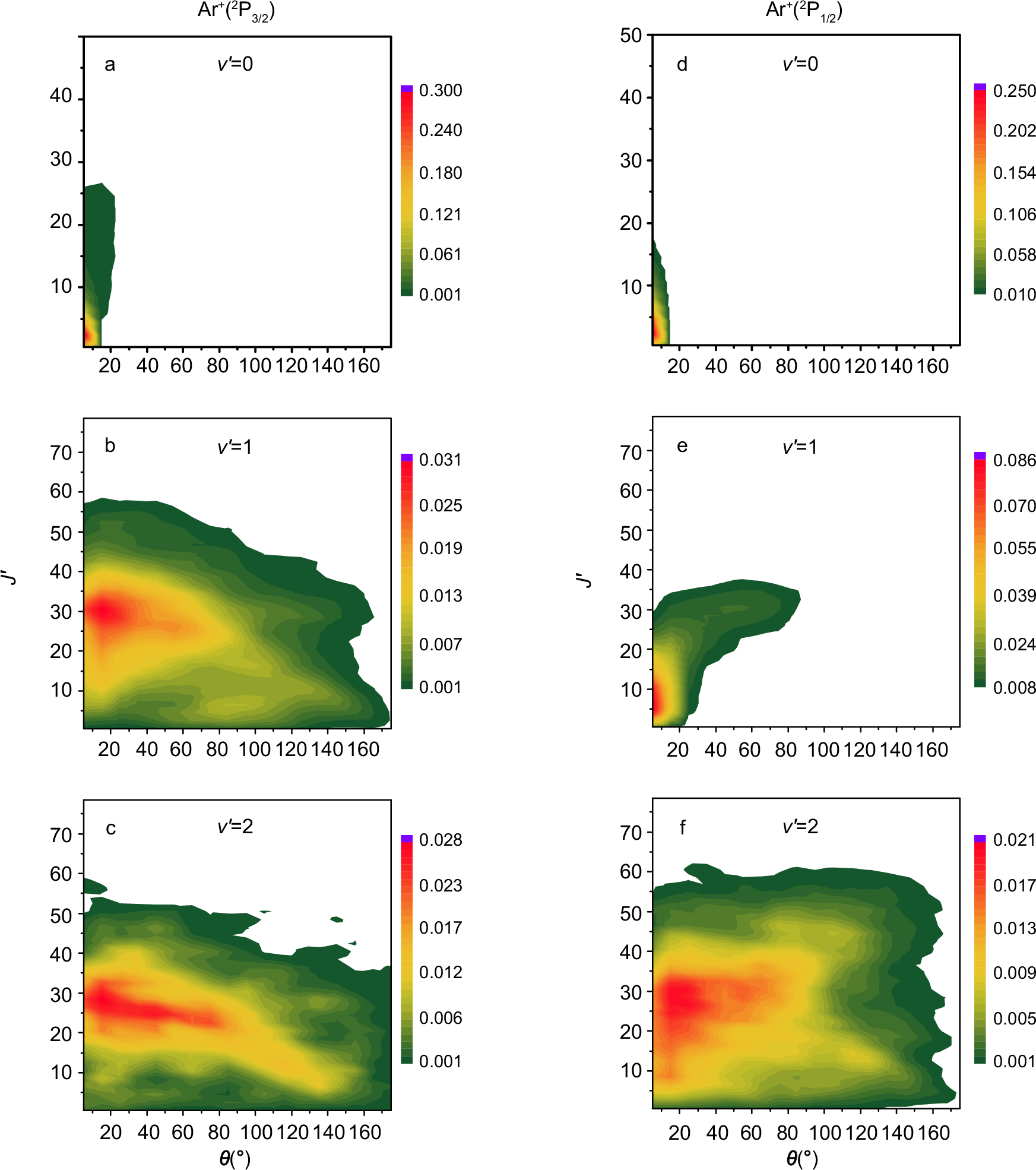

The calculated correlation contour map between the N2 product rotational excitation and the scattering angle for the collisional energy transfer process Ar+(2P3/2) + N2 → Ar+(2P1/2, 3/2) + N2(v′) at the COM collision energy of 1.58 eV: (a) N2(v′=0), (b) N2(v′=1), (c) N2(v′=2); and the calculated correlation contour map between the N2 product rotational excitation and the scattering angle for the collisional energy transfer process Ar+(2P1/2) + N2 → Ar+(2P1/2, 3/2) + N2(v′) at the COM collision energy of 1.58 eV: (d) N2(v′=0), (e) N2(v′=1), (f) N2(v′=2).
