Fig. 4: Frequency of >0.50 IBD within and between epidemiological zones in P. falciparum and P. vivax in Guyana.

From: Contrasting genomic epidemiology between sympatric Plasmodium falciparum and Plasmodium vivax populations

Fig. 4: Frequency of >0.50 IBD within and between epidemiological zones in P. falciparum and P. vivax in Guyana.

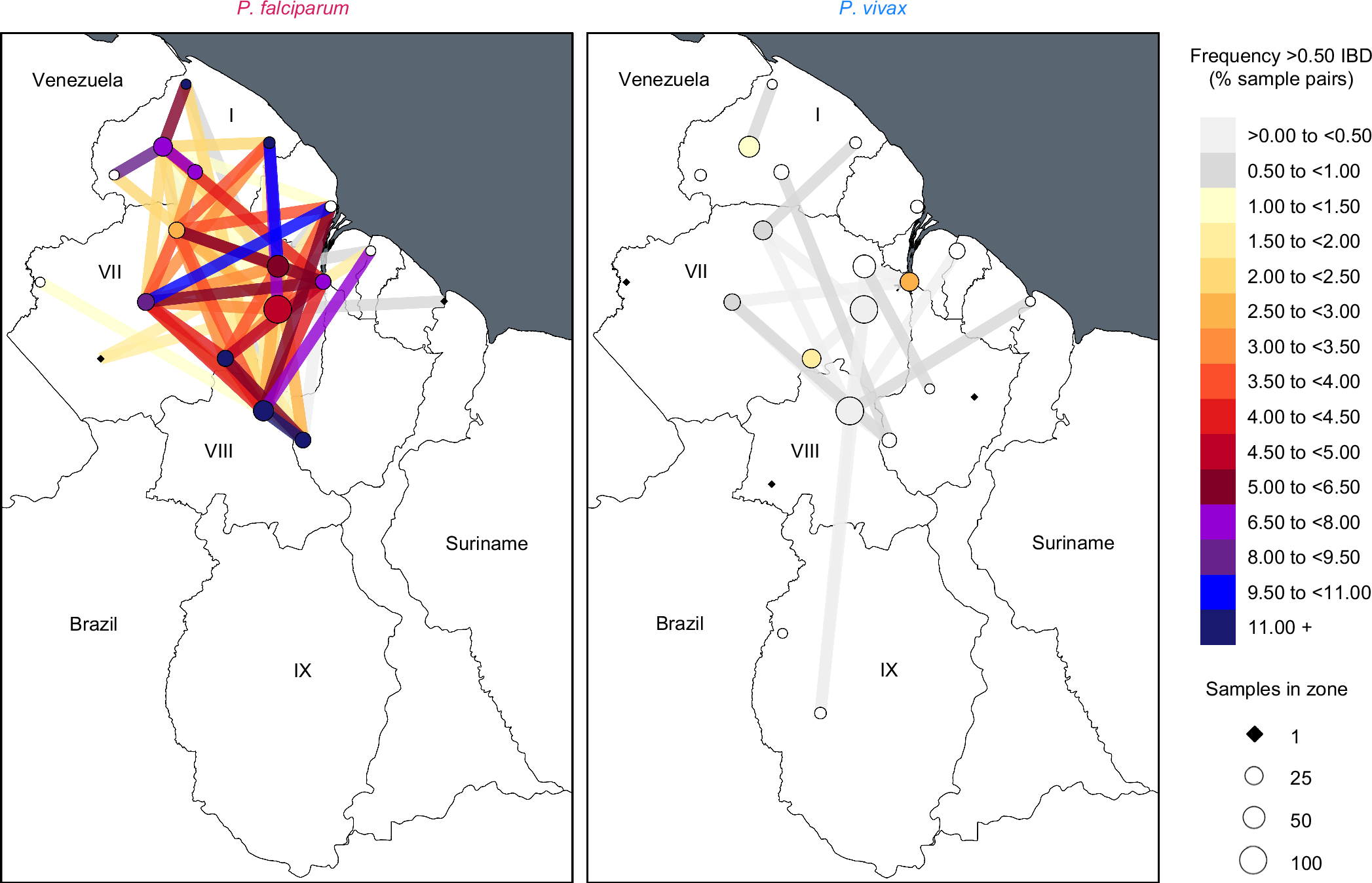

Nodes indicate epidemiological zones. Node and segment colors indicate frequency of >0.50 IBD within and between epidemiological zones (respectively) in 2020–21. Node sizes are proportional to genomic sampling size. Between-zone comparisons represented by ≤ 50 comparisons are excluded.
