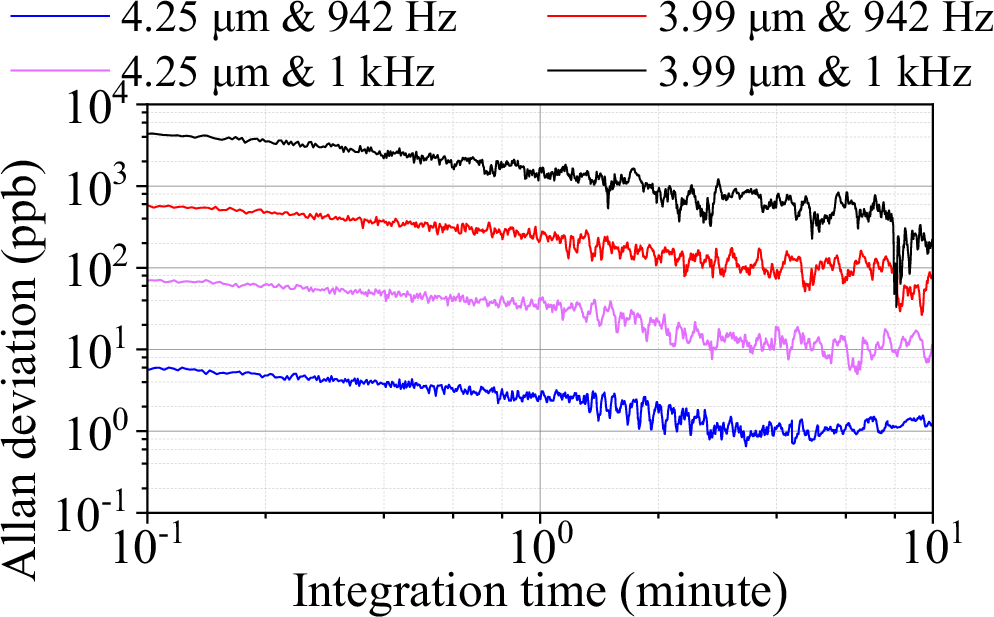

Fig. 4: Allan deviations of the background PA signals as a function of averaging time.

These Allan deviations are calculated at different repetition rates (942 Hz and 1 kHz) and wavelengths (3.99 and 4.25 μm) of the proposed gas-filled fiber Raman laser.
