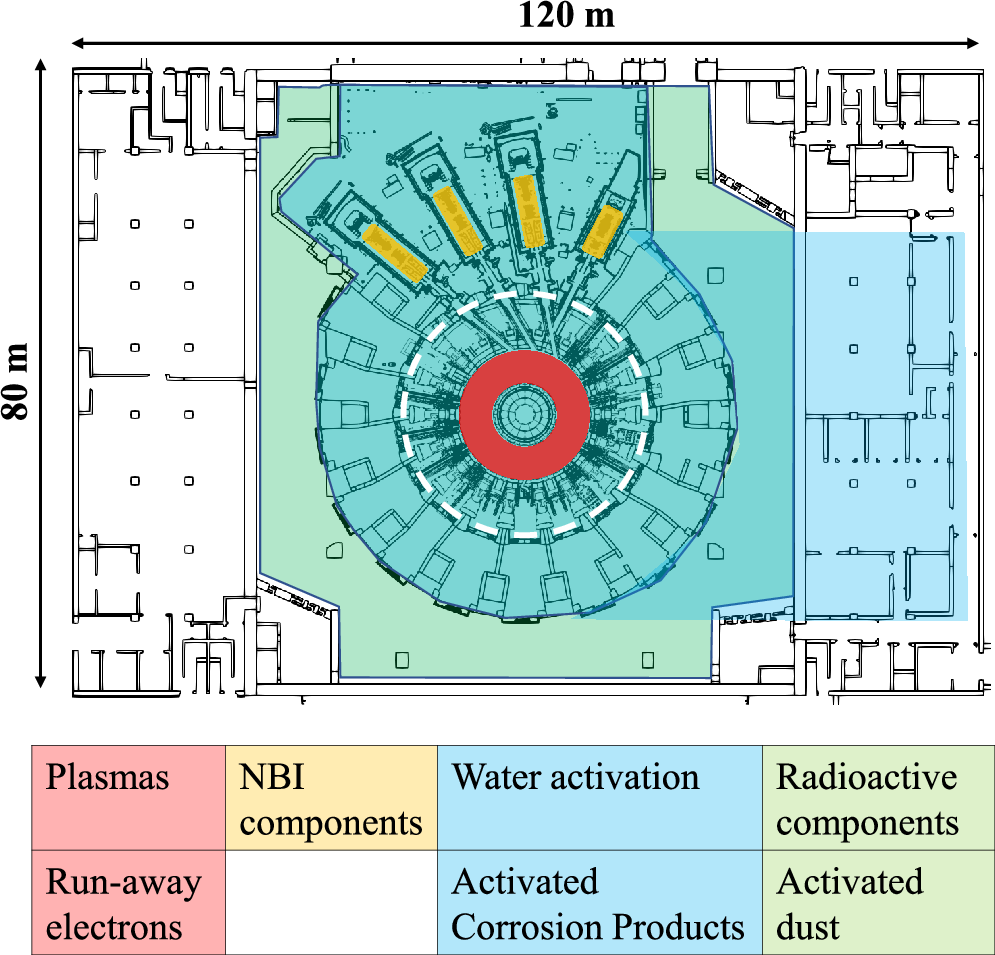

Fig. 2: Spatial distribution of radiation sources across the ITER Tokamak Complex.
From: ITER full model in MCNP for radiation safety demonstration
The bio-shield is highlighted in a white dashed line. Note that NBI stands for Neutral Beam Injector.
