Fig. 6: Electrochemical testing of the Mg@BP | |nano-CuS battery. | Nature Communications

Fig. 6: Electrochemical testing of the Mg@BP | |nano-CuS battery.

From: High-capacity, fast-charging and long-life magnesium/black phosphorous composite negative electrode for non-aqueous magnesium battery

Fig. 6: Electrochemical testing of the Mg@BP | |nano-CuS battery.

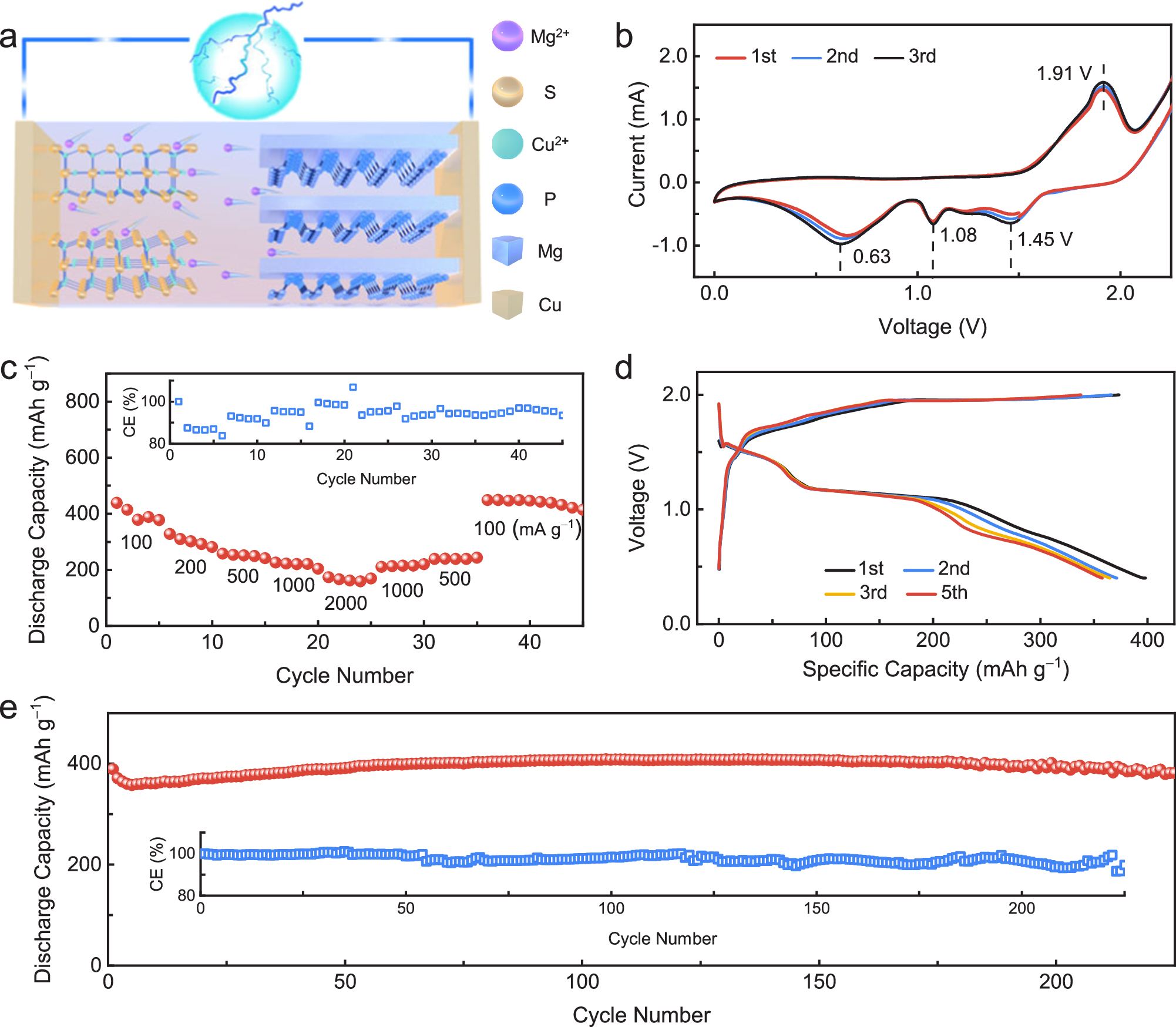

a Schematic model of the Mg@BP | |nano-CuS cell. b CV profiles. c Rate performances. d Voltage profiles of the 1st, 2nd, 3rd, and 5th cycles during cycling in (e). e Cycling performances at specific current of 560 mA g−1. The insets in (c, e) are the Coulombic efficiencies (CE) during cycling. All the tests were conducted at 25 °C using an APC electrolyte solution.
