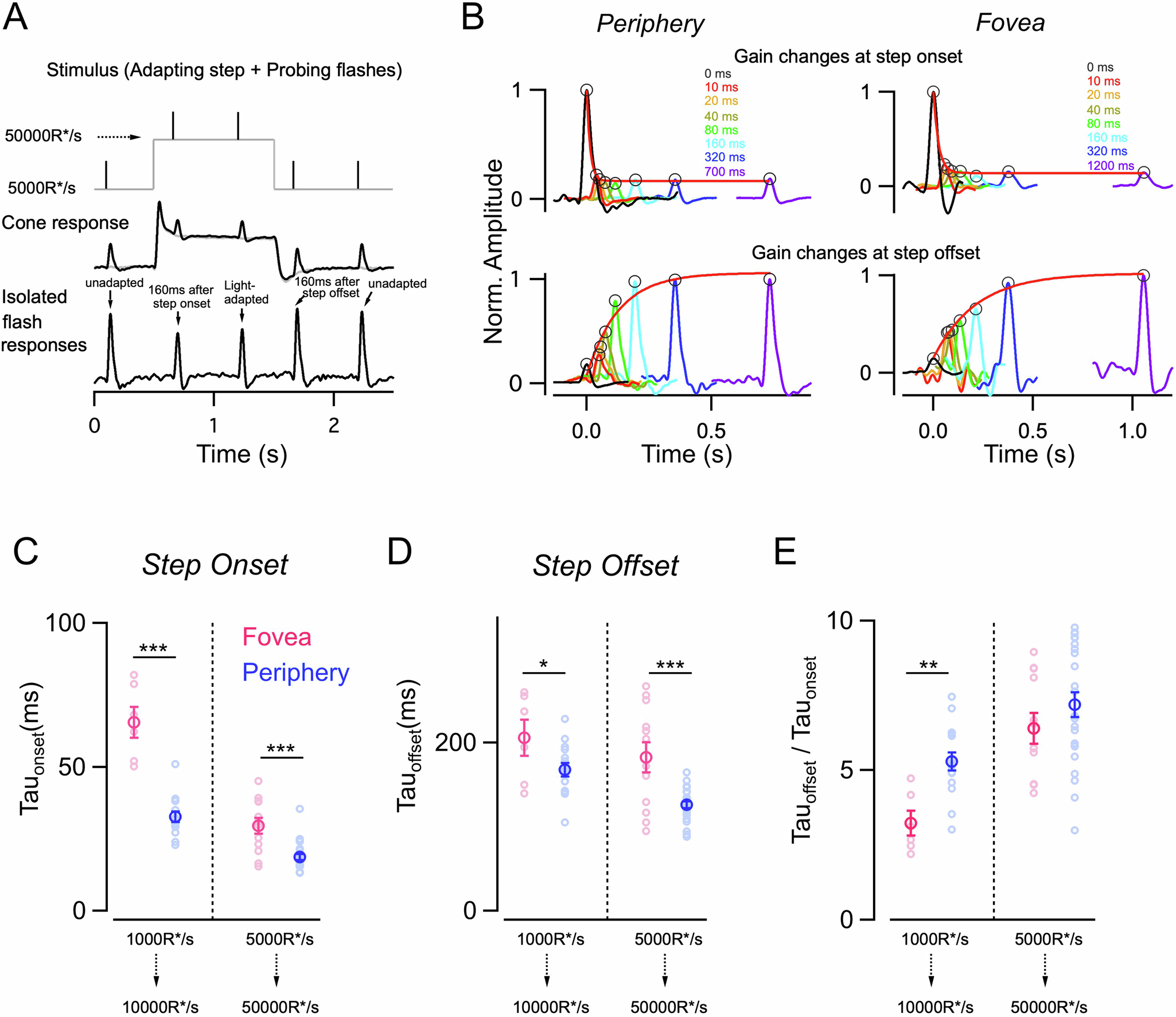

Fig. 3: Gain changes during light adaptation occur on a slower timescale in foveal compared to peripheral cones.
