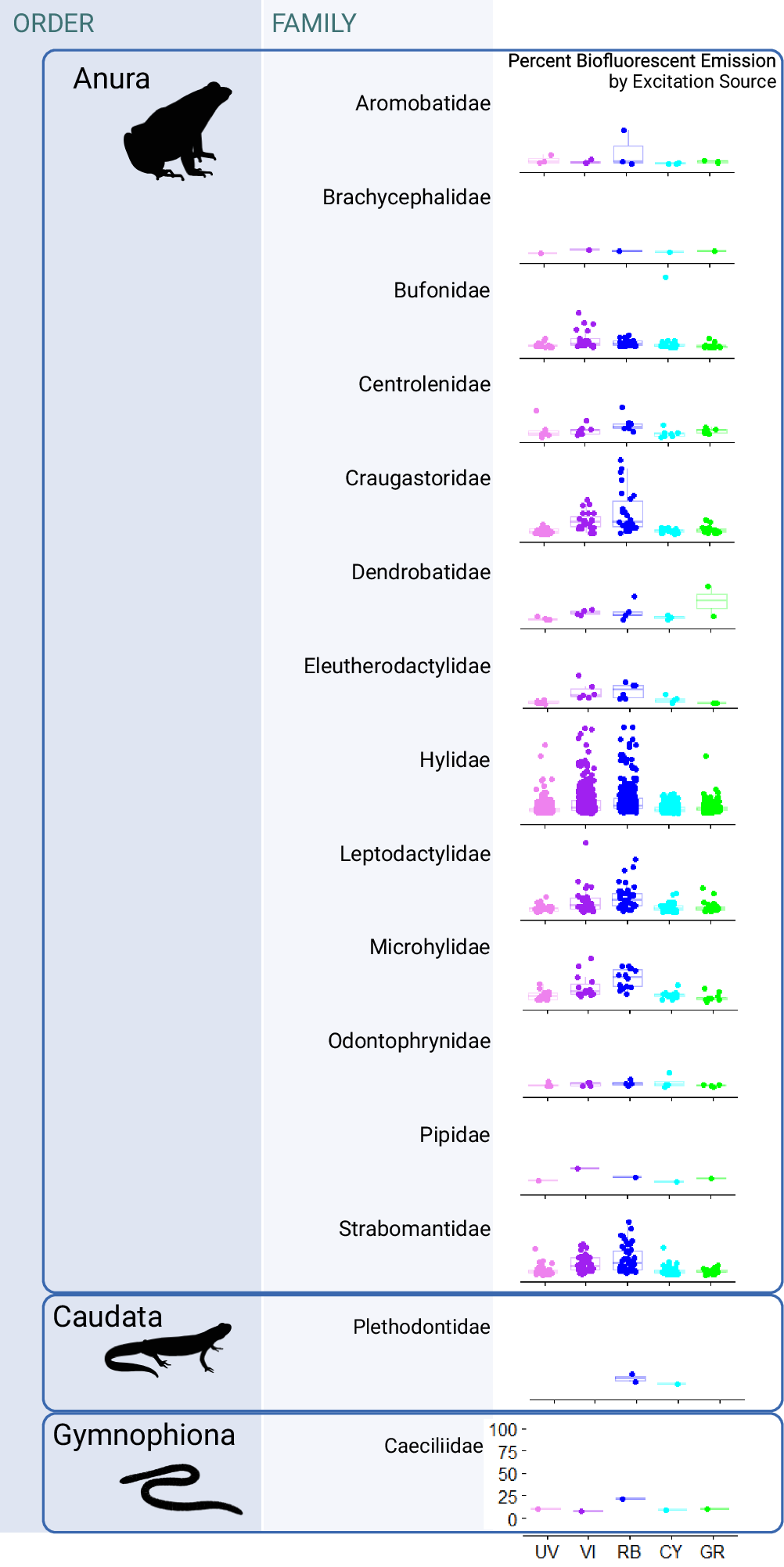

Fig. 1: Biofluorescent emission by taxonomic family.
From: Evidence for ecological tuning of anuran biofluorescent signals
A summary of the percent biofluorescent emission by family and excitation source. The set of box plots for each family presents the percent biofluorescent emission under the corresponding excitation light source: UV – Ultraviolet (360–380 nm), VI – Violet (400–415 nm), RB – Royal blue (440–460 nm), CY – Cyan (490–515 nm), and GR – Green (510–540 nm). The centre of each boxplot represents the median of the data. The bounds of the box represent the “interquartile range” (IQR), and the whiskers represent the minimum and maximum values of the data set. Axis labels on the bottom panel hold for each set of box plots above. Each point on the plots represents one individual (the maximum percent biofluorescent emission recorded for that individual under that excitation light source). Each individual was measured under each light source. Created in BioRender. Whitcher, C. (2023) BioRender.com/v49t214. Supplementary Data Table 4 contains the respective numeric values for these measurements.
