Fig. 5: Histomorphology change of bladder 2 weeks later.

From: A tissue bandage for pelvic ganglia injury

Fig. 5: Histomorphology change of bladder 2 weeks later.The alternative text for this image may have been generated using AI.

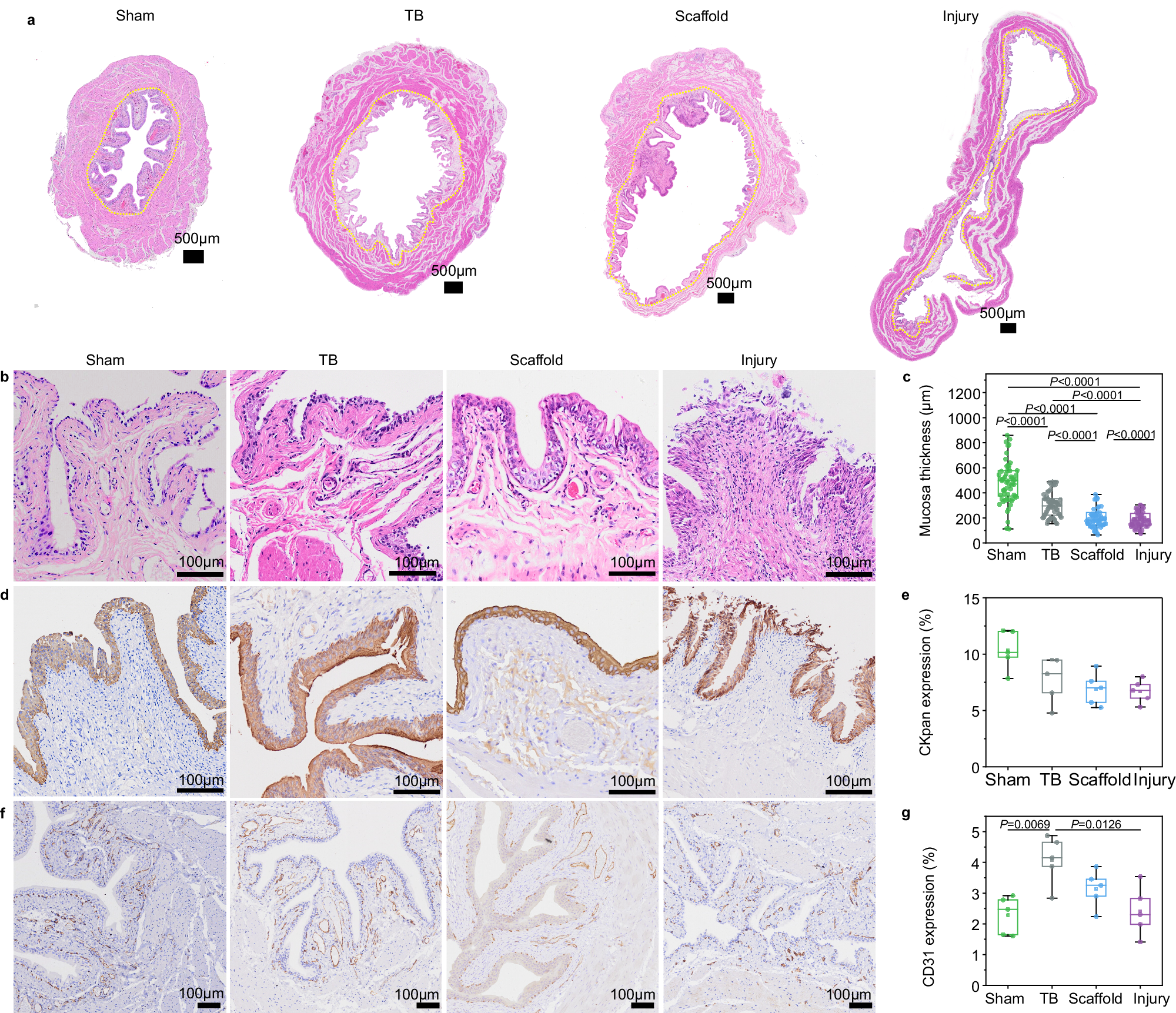

a Overview of H&E staining of bladder morphology. Yellow dots marked the boundary of bladder mucosal layer and muscular layer. b, c Representative view of bladder mucosal layer and analysis of its thickness per slice. n = 61 in 5 rats. d, e IHC staining of pan Cytokeratin (CKpan) and analysis of its expression in mucosal layer per field. n = 5. f, g Representative view of IHC staining of CD31 and its expression analysis in the bladder per field. n = 5. For box plots, box shows median, 25th and 75th percentiles and whiskers represent minima and maxima. One-way ANOVA followed by a variance homogeneity test with Levene correction and multiple comparisons with Bonferroni correction. Outliers exceeding upper and lower limits are removed based on box plot analysis. Source data are provided in NC._data_file_s1.
