Fig. 4: Reduced IFN-γ production in Hif1α− / − T cells is not due to proliferative defect.

From: HIF1α-regulated glycolysis promotes activation-induced cell death and IFN-γ induction in hypoxic T cells

Fig. 4

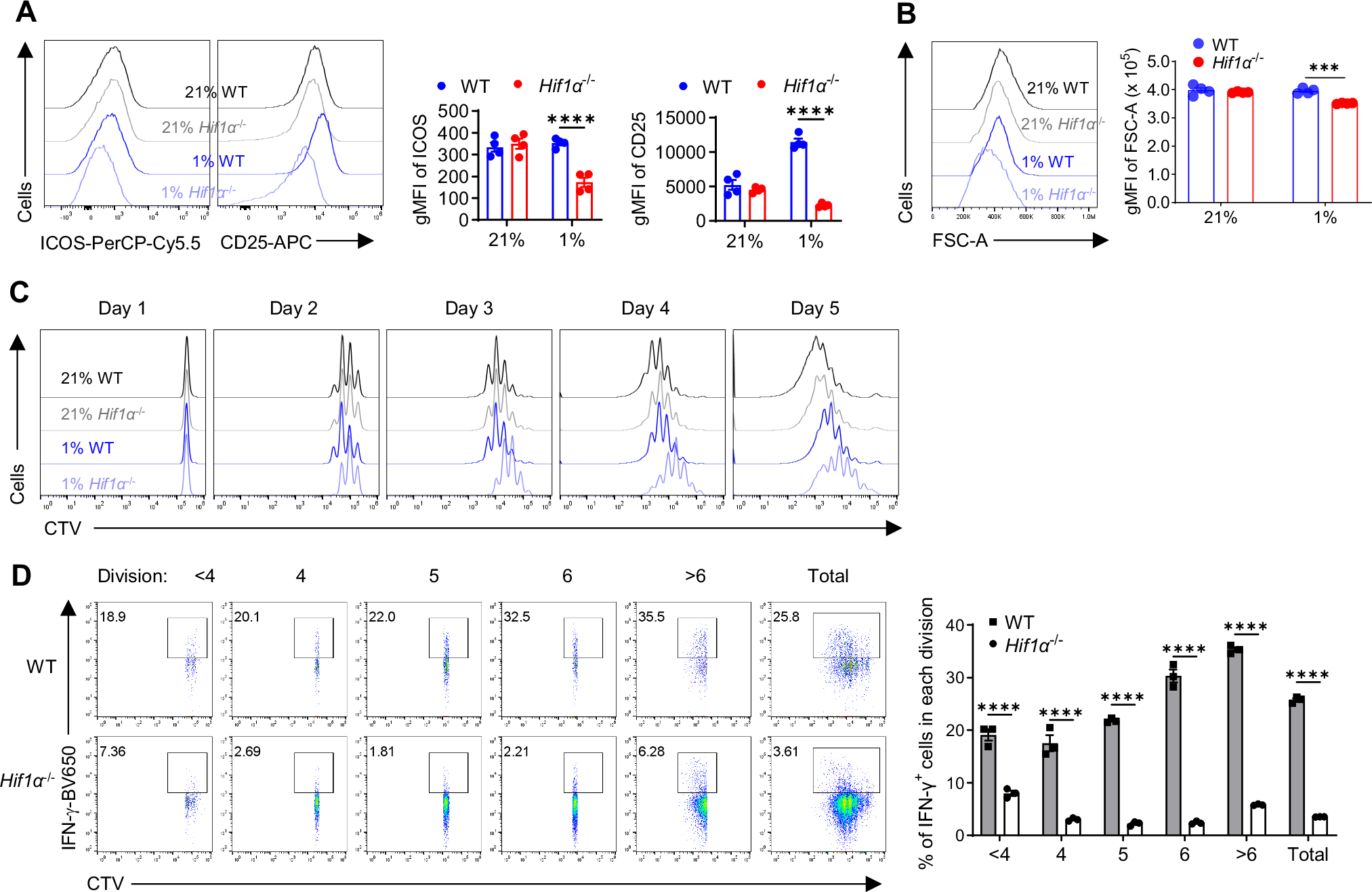

AB Naïve WT and Hif1α− / − CD4+ T cells were activated under normoxia (21% O2) and hypoxia (1% O2) for 5 days. Gated live cells were analyzed for the expression of ICOS and CD25 (A), depicted as geometric mean fluorescence intensity (gMFI), and area of forward scatter (FSC-A) (B) (N = 4 per group, ****p < 0.0001, ***p = 0.0001). CD Naïve WT and Hif1α− / − CD4+ T cells were labeled with CellTrace Violet (CTV) and activated under normoxia (21% O2) and hypoxia (1% O2). CTV dilution was monitored daily to assess cell proliferation (C). IFN-γ production by activated WT and Hif1α− / − CD4+ T cells within indicated cell divisions was shown (D) (N = 3 per group, ****p < 0.0001). Two-way ANOVA with Šídák’s multiple comparisons test (with adjustment) was used for (AB and D). All the experiments were repeated at least twice. Pooled results shown in the dot plots and bar graphs depicted means ± SEM for all the samples in each group, with each dot denoting an independent sample. Source data were provided in the Source Data file.
