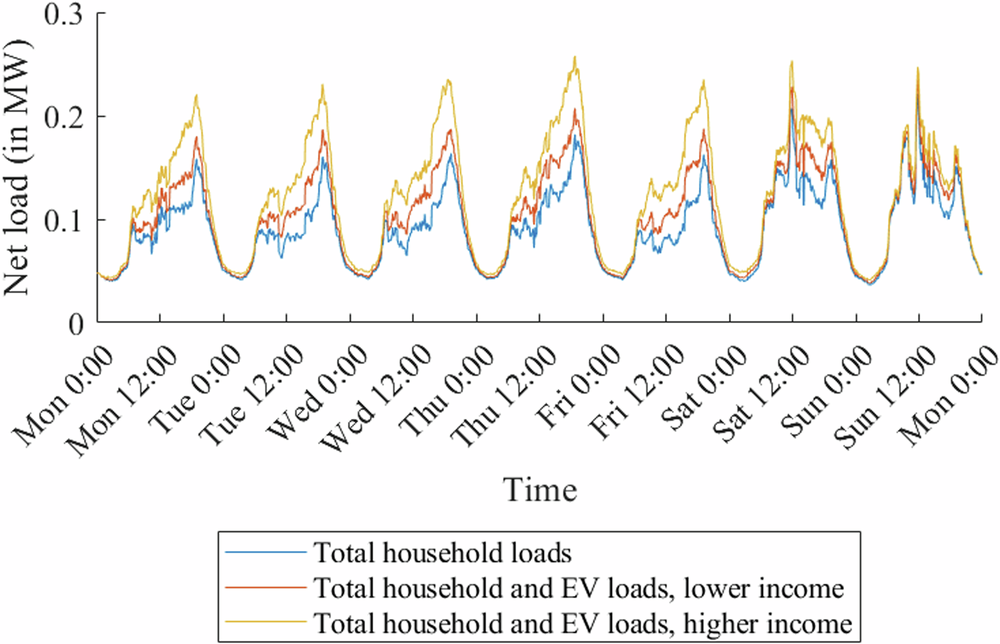

Fig. 3: Net load profiles of households with and without electric vehicles (EVs) in the rural grid.
From: How grid reinforcement costs differ by the income of electric vehicle users
The lines indicate the induced load curves for an average week in December in the rural grid. While the blue line shows the total household loads before EV charging, the orange line also includes the EV charging loads for the lower-income neighborhood. The yellow line includes the household loads with EV charging loads for the higher-income neighborhood. Source data are provided as a Source Data file.
