Fig. 3: Characterization and simulation of electrolyte.

From: A tripartite synergistic optimization strategy for zinc-iodine batteries

Fig. 3

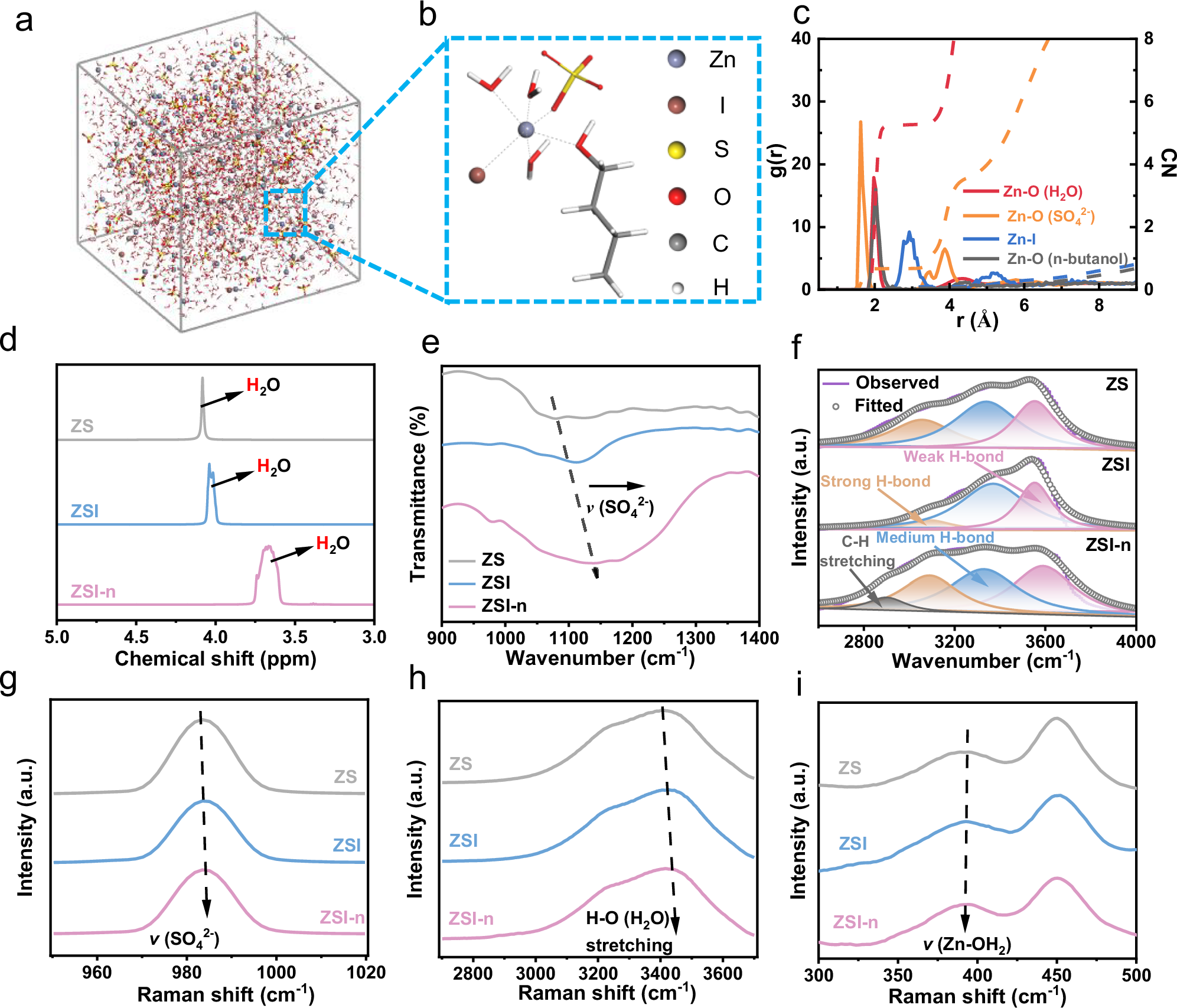

a Snapshot of MD simulation box for ZSI-n. b enlarger view of snapshot for ZSI-n. c RDFs for coordinated bond with Zn2+ in ZSI-n. d 1H NMR spectra for ZS, ZSI and ZSI-n. e FTIR of three electrolytes between 900 and 1400 cm−1. f Fitted FTIR of three electrolytes. Raman spectra between (g) 2600-3800 cm−1, (h) 950–1020 cm−1, and (i) 300–500 cm−1.
