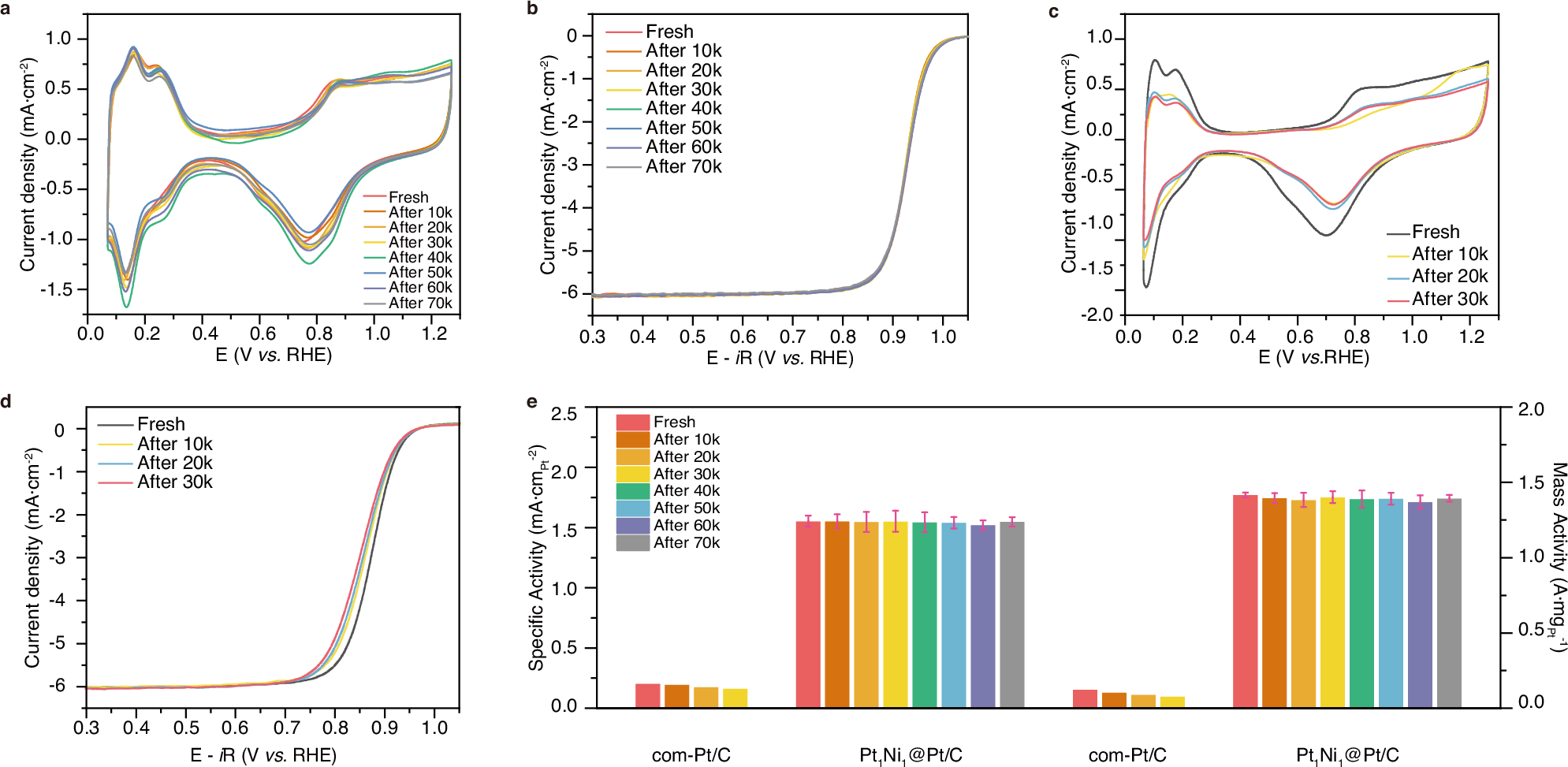

Fig. 4: ORR durability of Pt1Ni1@Pt/C and com-Pt/C.
From: Carbon-anchoring synthesis of Pt1Ni1@Pt/C core-shell catalysts for stable oxygen reduction reaction
a CV curves and b iR corrected ORR polarization curves of Pt1Ni1@Pt/C after every 10 k potential cycles in 0.1 M HClO4. c CV curves and d iR corrected ORR polarization curves of com-Pt/C after every 10 k potential cycles in 0.1 M HClO4. e MA and SA comparison between Pt1Ni1@Pt/C and com-Pt/C during ADT. The error bars indicate the standard deviation, derived from three independent ADT measurements. iR correction was conducted at 100% manually.
