Fig. 6: Theoretical calculation results of Ti8Hn.

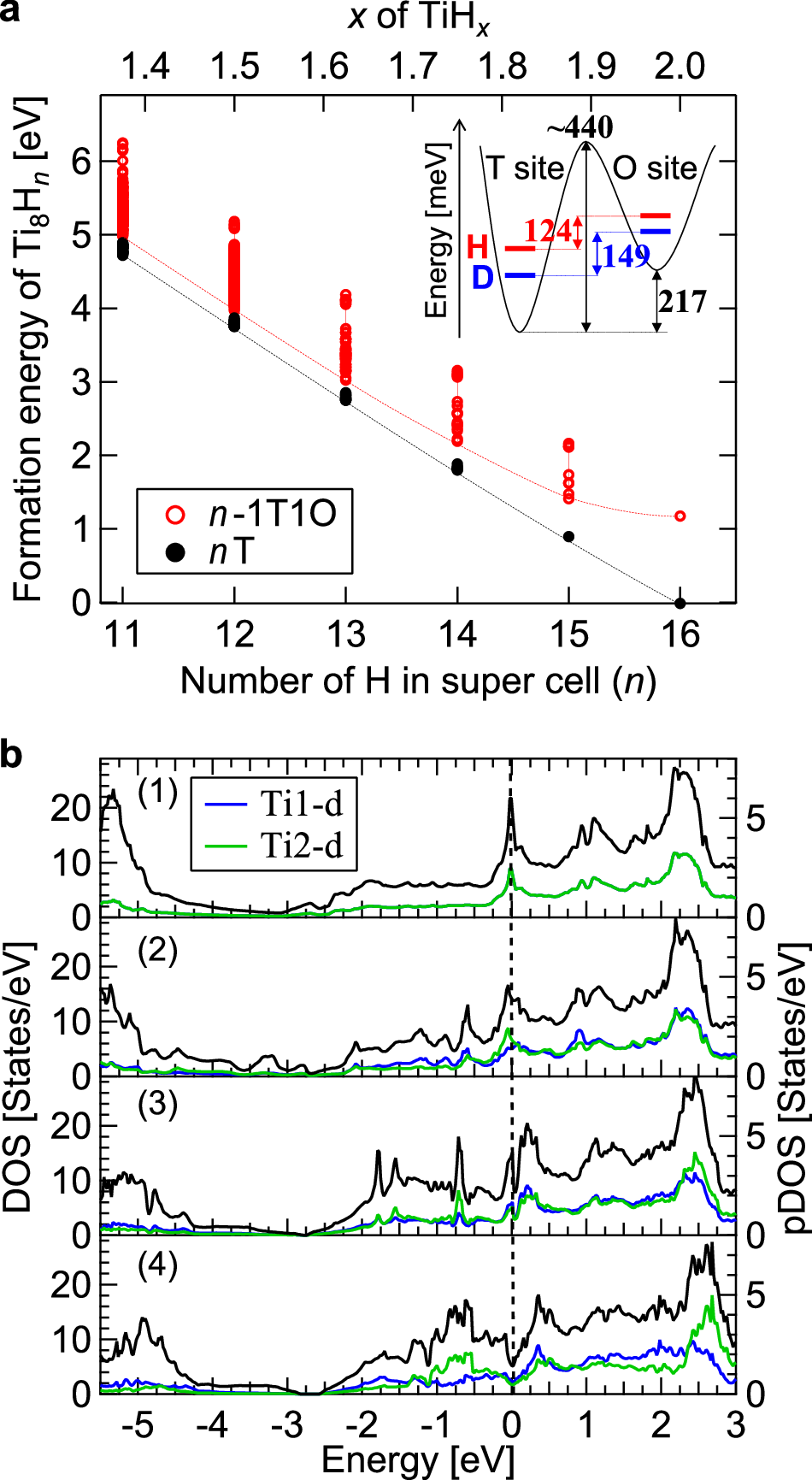

From: Isotope-dependent site occupation of hydrogen in epitaxial titanium hydride nanofilms
