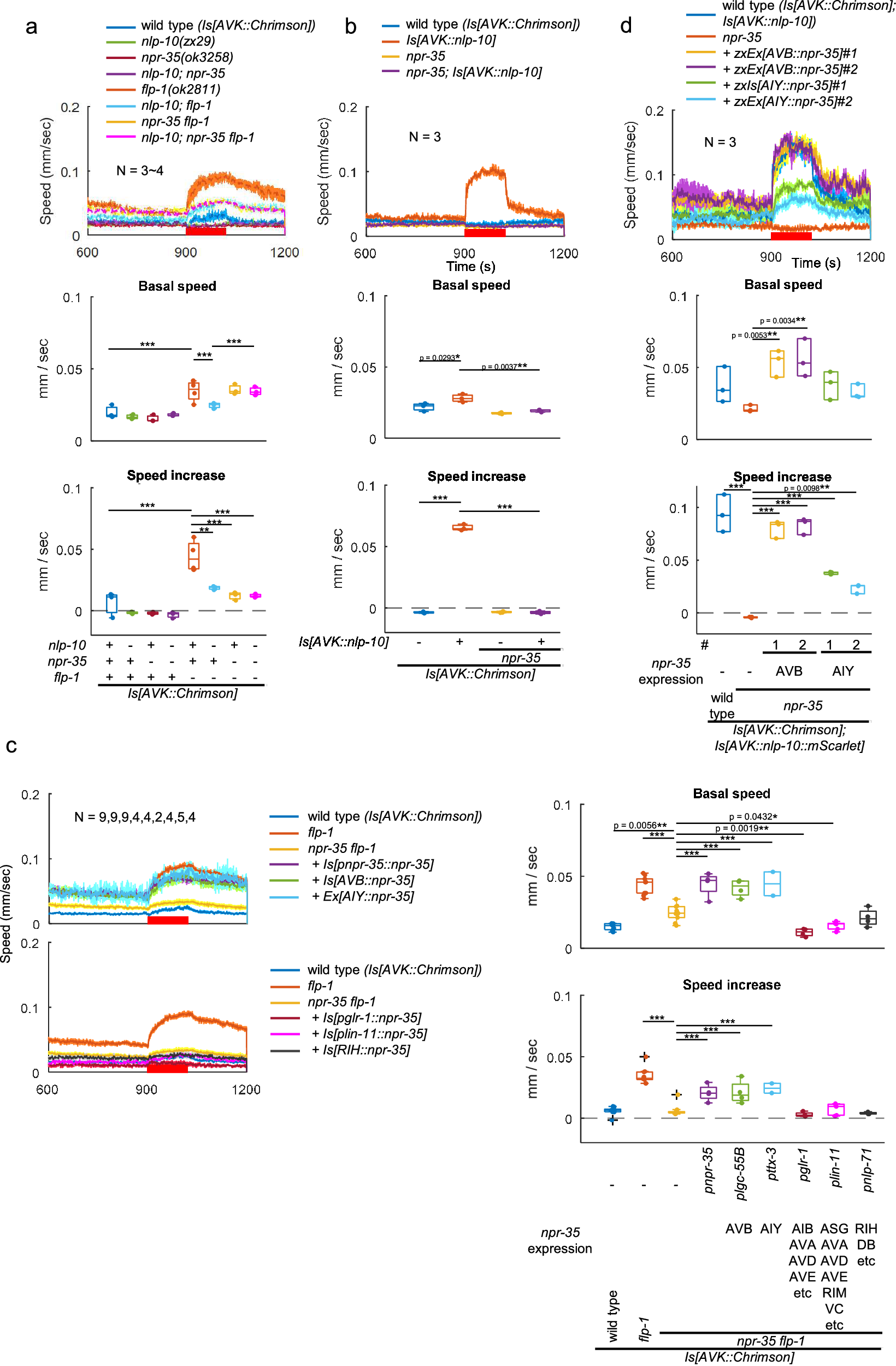

Fig. 5: NPR-35 mediates speed increase downstream of NLP-10.
From: Hierarchical regulation of functionally antagonistic neuropeptides expressed in a single neuron pair
a–c Animals of indicated genotypes expressing Chrimson in AVK were cultivated with ATR and subjected to behavioral analysis with MWT while red light was illuminated as indicated. Tukey test (a, b) or Dunnett test against npr-35 flp-1 double mutants (c) was performed. ***p < 0.001. Approximately 20–120 animals were involved in each recording. d Animals of indicated genotypes were picked and transferred to NGM plates with ATR, cultivated overnight and subjected to behavioral analysis with MWT. Dunnett test was performed against npr-35 mutants. ***p < 0.001. Approximately 10-50 animals were involved in each recording. In timeseries plots, data are presented as mean values +/- SEM. In boxplots, the boxes extend from the Q1 to Q3, with the band inside the boxes representing the median. The whiskers extend to the smallest and largest values within 1.5 times the IQR. Source data are provided in ‘Source Data 1’ file.
