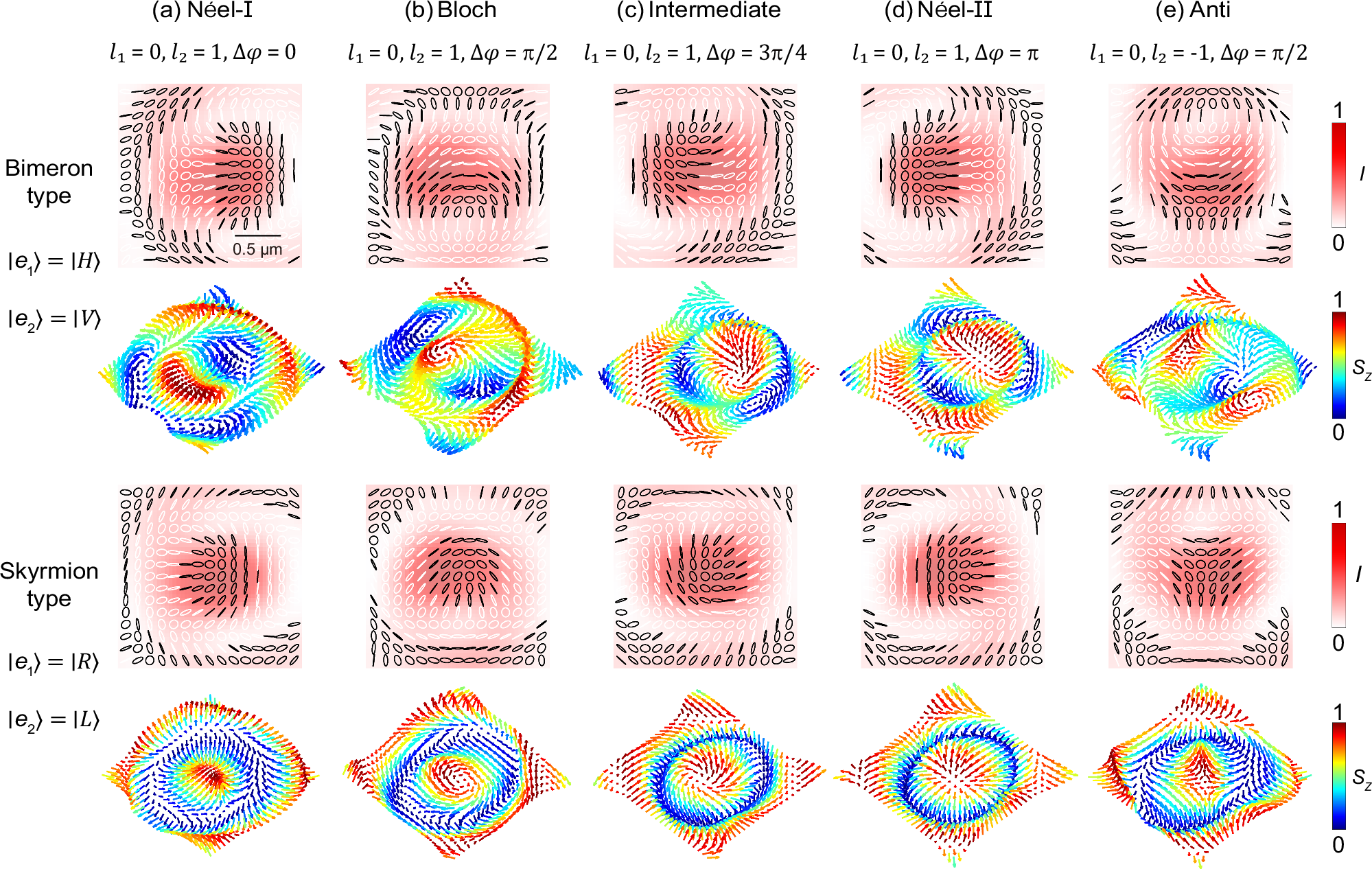

Fig. 3: Topological texture tunability.
From: Optical skyrmions from metafibers with subwavelength features
Simulated elliptical polarization distributions and 3D vector distributions for various topological textures generated from different metafibers. Corresponding intensity profiles are shown under the polarization distributions. From left to right columns: (a) Néel-I, (b) Bloch, (c) Intermediate, (d) Néel-II, and (e) Anti textures. Upper two rows: bimeron-type, lower two rows: skyrmion-type. Scale bar: 0.5 μm.
