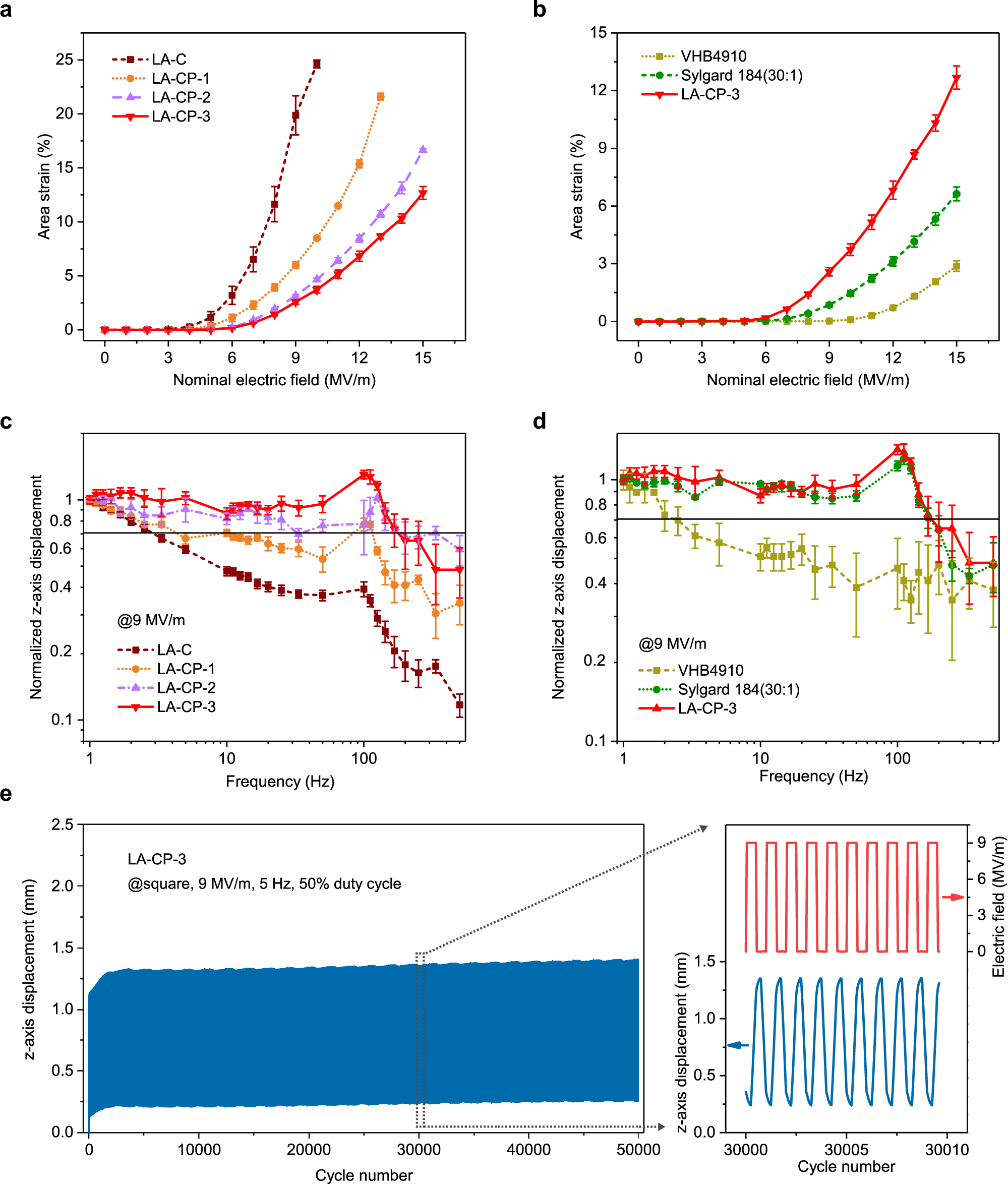

Fig. 3: Electrical actuation performance.

From: A high-response-frequency bimodal network polyacrylate elastomer with ultrahigh power density under low electric field

Fig. 3: Electrical actuation performance.

a Dependence of actuated area strain on the nominal driving electric field for LA-C, LA-CP-1, LA-CP-2, and LA-CP-3. b Dependence of actuated area strain on the nominal driving electric field for commercial elastomers (VHB4910 and Sylgard 184) and LA-CP-3. c Frequency response of samples under 9 MV m−1 in the range of 1 Hz–500 Hz. The z-axis displacement was normalized to 1 at 1 Hz. d Frequency response of VHB4910, Sylgard 184 and LA-CP-3 under 9 MV m−1 in the range of 1 Hz–500 Hz. e Variation of z-axis displacement during cyclic actuation test of 50,000 cycles. The enlarged image on the right shows the 30,000~30,010th cycles.
