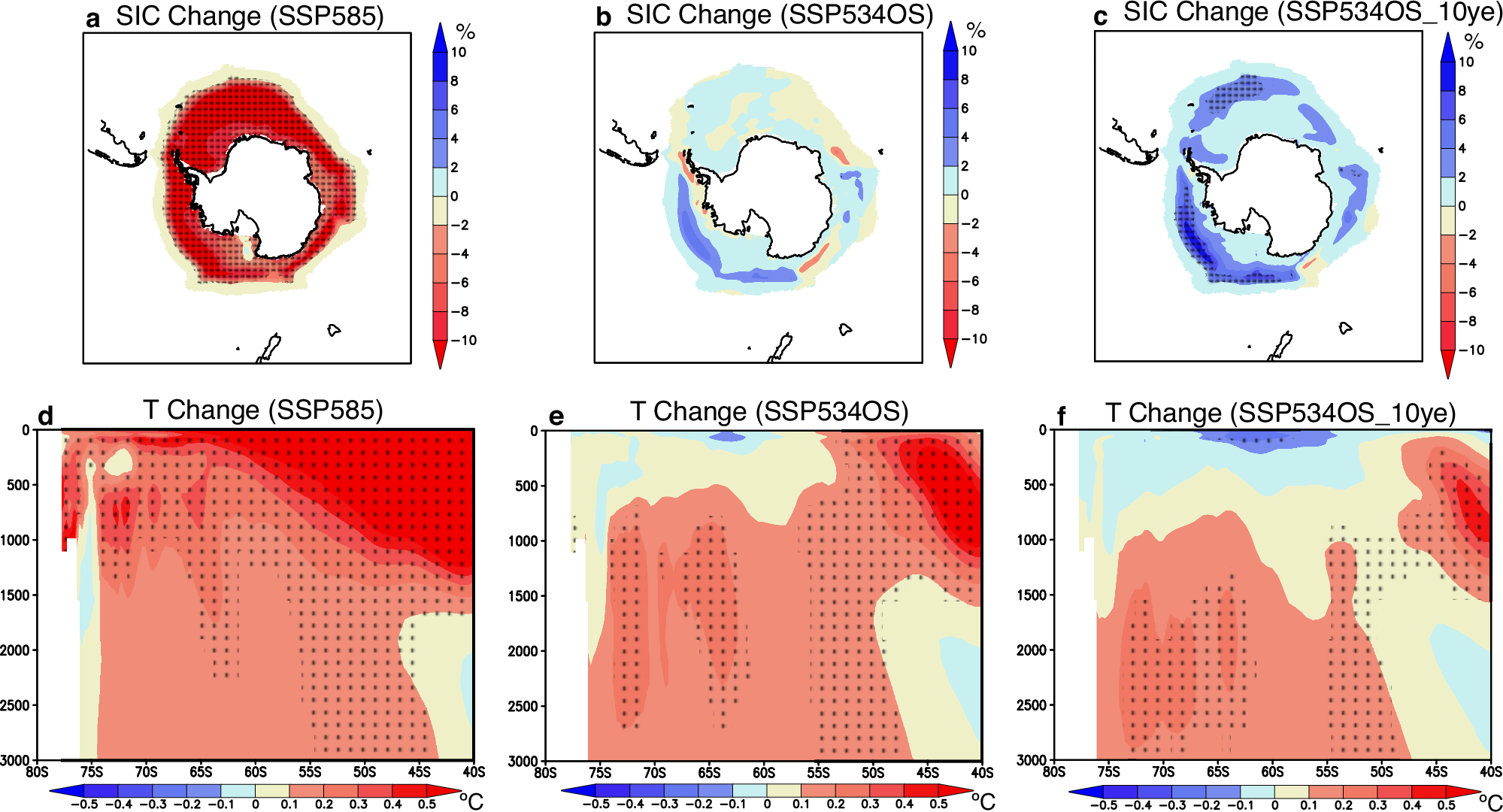

Fig. 3: Multidecadal changes (2081–2100 minus 2041–2060) in sea ice concentration (SIC) and zonal-mean ocean potential temperature in SPEAR_MED runs.
From: Role of anthropogenic forcing in Antarctic sea ice variability simulated in climate models
a–c Multidecadal changes in the SIC (in %) from 2041–2060 to 2081–2100 for SPEAR_MED SSP585, SSP534OS, and SSP534OS_10ye forcing runs. Black dots indicate the statistically significant changes that exceed 90% confidence level using Student’s t-test. d–f Latitude-depth cross-section of multidecadal changes in the zonal-mean ocean potential temperature (color in °C) from 2041–2060 to 2081–2100 for SPEAR_MED SSP585, SSP534OS, and SSP534OS_10ye forcing runs. Black dots indicate the statistically significant changes that exceed 90% confidence level using Student’s t-test.
